產品簡介

NKG晶振|S5M晶振|S5M32.0000F20E23-EXT|5032mm晶振,香港晶振品牌,NKG晶振,S5M無源晶振,進口晶振,S5M32.0000F20E23-EXT晶振,5.0x3.2mm石英晶振,SMD晶體,晶體諧振器,四腳貼片晶振,頻率32MHz,負載20pF,頻率容差20ppm,工作溫度范圍-20~70°C,高精度晶振,高品質晶振,低老化晶振,無線局域網晶振,微處理器晶振,調制解調器晶振,移動通信晶振.

產品詳情

yijin-1 NKG晶振|S5M晶振|S5M32.0000F20E23-EXT|5032mm晶振,香港晶振品牌,NKG晶振,S5M無源晶振,進口晶振,S5M32.0000F20E23-EXT晶振,5.0x3.2mm石英晶振,SMD晶體,晶體諧振器,四腳貼片晶振,頻率32MHz,負載20pF,頻率容差20ppm,工作溫度范圍-20~70°C,高精度晶振,高品質晶振,低老化晶振,無線局域網晶振,微處理器晶振,調制解調器晶振,移動通信晶振.

NKG晶振|S5M晶振|S5M32.0000F20E23-EXT|5032mm晶振特點：

●小包裝尺寸5.0x 3.2x 0.8mm, 4個襯墊。

●優異的耐熱性和抗震性。

●高可靠的縫封封裝，低老化。

●符合AEC-Q200標準的汽車級產品可供選擇

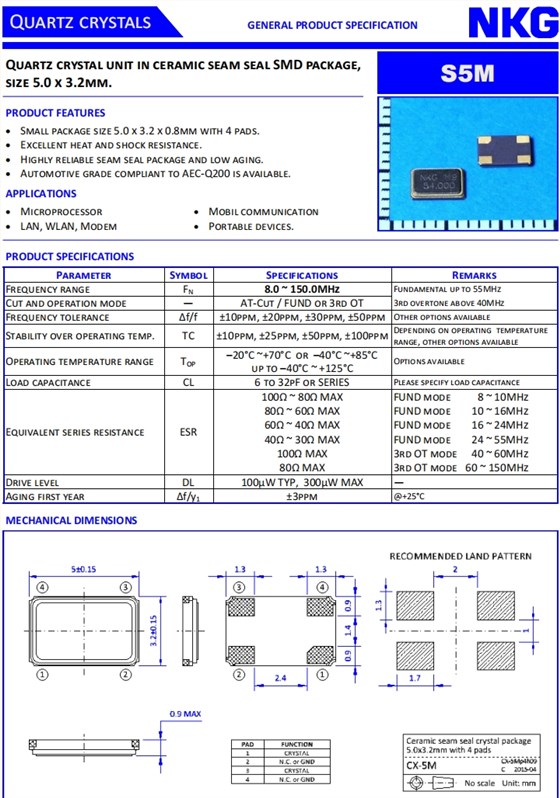

yijin-2 NKG晶振|S5M晶振|S5M32.0000F20E23-EXT|5032mm晶振規格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	32MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±30ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–20°C ~+70°C	Options available
Load capacitance	CL	20pF	Please specify load capacitance
Equivalent series resistance	ESR	40Ω ~ 30Ω MAX	FUND mode 24 ~ 55MHz
Drive level	DL	10µW TYP, 100µW MAX	-
Aging first year	Δf/y1	±3ppm	@+25°C
