產品簡介

NKG晶振|S3M晶振|S3M27.1200F12M23-EXT|3225mm晶振,香港NKG晶振,S3M無源晶振,石英晶振,S3M27.1200F12M23-EXT晶振,3225進口晶振,SMD晶體,石英晶體諧振器,四腳貼片晶振,頻率27.12MHz,負載12pF,頻率容差20ppm,工作溫度范圍-40~85°C,小體積晶振,高可靠性晶振,低老化晶振,移動通信晶振,藍牙模塊晶振,USB存儲設備晶振,便攜式設備晶振.

產品詳情

yijin-1 NKG晶振|S3M晶振|S3M27.1200F12M23-EXT|3225mm晶振,香港NKG晶振,S3M無源晶振,石英晶振,S3M27.1200F12M23-EXT晶振,3225進口晶振,SMD晶體,石英晶體諧振器,四腳貼片晶振,頻率27.12MHz,負載12pF,頻率容差20ppm,工作溫度范圍-40~85°C,小體積晶振,高可靠性晶振,低老化晶振,移動通信晶振,藍牙模塊晶振,USB存儲設備晶振,便攜式設備晶振.

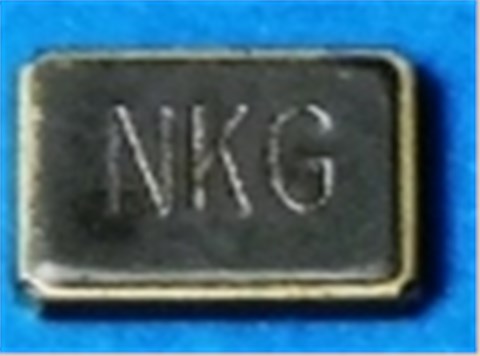

NKG晶振|S3M晶振|S3M27.1200F12M23-EXT|3225mm晶振特點：

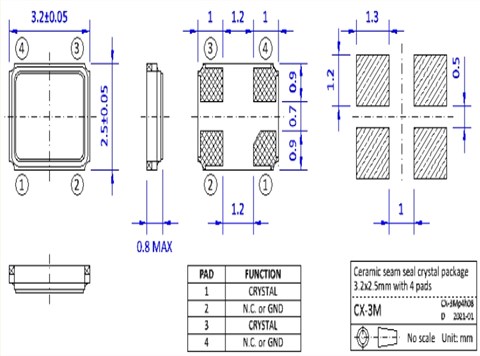

●微型包裝尺寸3.2x 2.5x 0.7mm, 4個襯墊。

●優異的耐熱性和抗震性。

●真空密封，可靠性高，老化率低。

●符合AEC-Q200標準的汽車級產品可供選擇

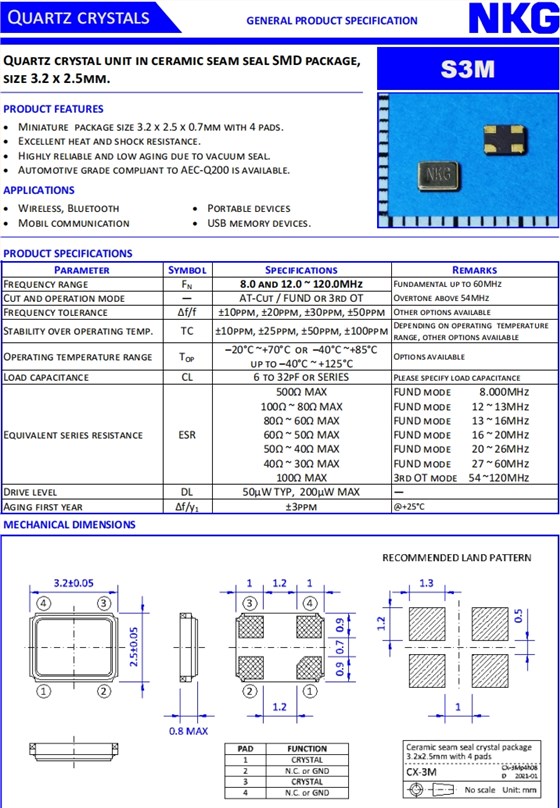

yijin-2 NKG晶振|S3M晶振|S3M27.1200F12M23-EXT|3225mm晶振規格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	27.12MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±30ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Load capacitance	CL	12pF	Please specify load capacitance
Equivalent series resistance	ESR	40Ω ~ 30Ω MAX	FUND mode 27 ~ 60MHz
Drive level	DL	10µW TYP, 100µW MAX	-
Aging first year	Δf/y1	±3ppm	@+25°C
