NKG晶振|S2SM晶振|S2SM32.000F20M23-EXT|2016mm晶振,NKG晶振,S2SM無源晶振,貼片晶振,S2SM32.000F20M23-EXT晶振,2.0x1.6石英晶體,晶體諧振器,四腳封裝晶振,頻率32MHz,負載20pF,頻率容差20ppm,工作溫度范圍-40~85°C,耐高溫晶振,小體積晶振,高穩定性晶振,移動通信晶振,藍牙模塊晶振,USB存儲設備晶振,數碼產品晶振.

產品詳情

yijin-1 NKG晶振|S2SM晶振|S2SM32.000F20M23-EXT|2016mm晶振,NKG晶振,S2SM無源晶振,貼片晶振,S2SM32.000F20M23-EXT晶振,2.0x1.6石英晶體,晶體諧振器,四腳封裝晶振,頻率32MHz,負載20pF,頻率容差20ppm,工作溫度范圍-40~85°C,耐高溫晶振,小體積晶振,高穩定性晶振,移動通信晶振,藍牙模塊晶振,USB存儲設備晶振,數碼產品晶振.

NKG晶振|S2SM晶振|S2SM32.000F20M23-EXT|2016mm晶振特點：

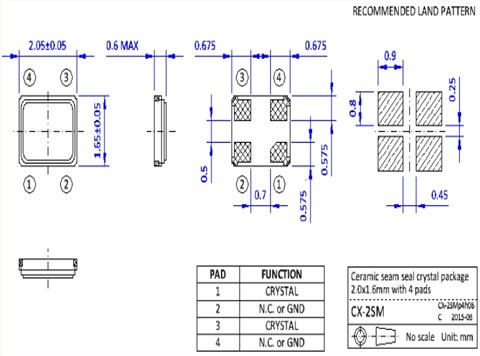

●微型包裝尺寸2.0 x 1.6 x 0.5mm, 4個襯墊。

●優異的耐熱性和抗震性。

●真空密封，可靠性高，老化率低。

●符合AEC-Q200標準的汽車級產品可供選擇

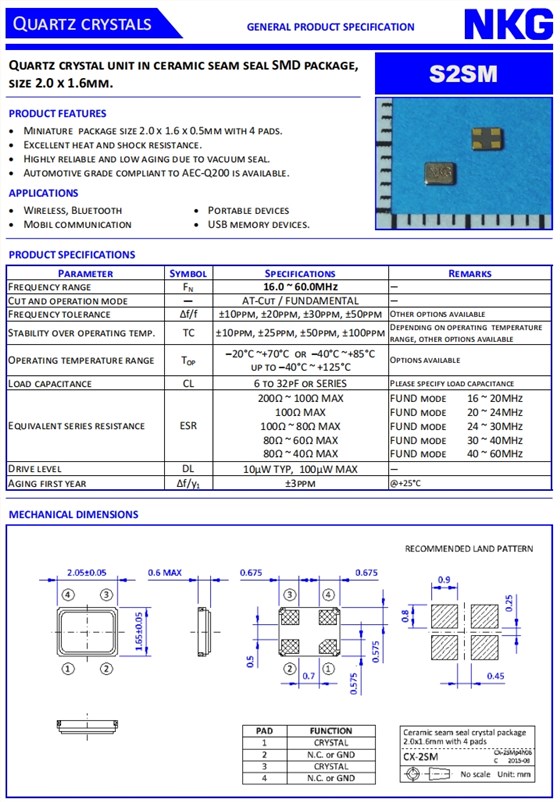

yijin-2 NKG晶振|S2SM晶振|S2SM32.000F20M23-EXT|2016mm晶振規格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	32MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±30ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Load capacitance	CL	20pF	Please specify load capacitance
Equivalent series resistance	ESR	80Ω ~ 60Ω MAX	FUND mode 30 ~ 40MHz
Drive level	DL	10µW TYP, 100µW MAX	-
Aging first year	Δf/y1	±3ppm	@+25°C
