產品簡介

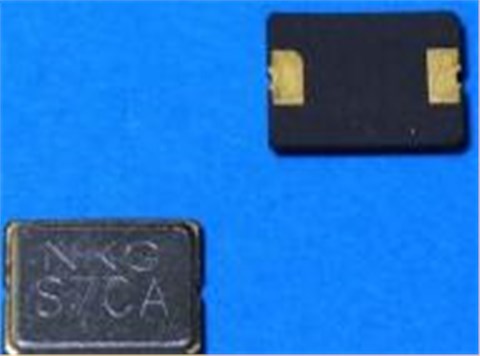

NKG Crystal|S7CA晶振|S7CA54.0000F16M1Y-EXT|6G網絡終端晶振,NKG Crystal,S7CA進口晶振,無源晶振,S7CA54.0000F16M1Y-EXT晶振,石英晶體諧振器,SMD晶體,7050貼片晶振,二腳封裝晶振,頻率54MHz,負載16pF,頻率容差10ppm,工作溫度范圍-40~85°C,高精度晶振,高可靠性晶振,無鉛環保晶振,6G網絡終端晶振,筆記本電腦晶振,數字設備晶振,測試與測量設備晶振.

產品詳情

yijin-1 NKG Crystal|S7CA晶振|S7CA54.0000F16M1Y-EXT|6G網絡終端晶振,NKG Crystal,S7CA進口晶振,無源晶振,S7CA54.0000F16M1Y-EXT晶振,石英晶體諧振器,SMD晶體,7050貼片晶振,二腳封裝晶振,頻率54MHz,負載16pF,頻率容差10ppm,工作溫度范圍-40~85°C,高精度晶振,高可靠性晶振,無鉛環保晶振,6G網絡終端晶振,筆記本電腦晶振,數字設備晶振,測試與測量設備晶振.

NKG Crystal|S7CA晶振|S7CA54.0000F16M1Y-EXT|6G網絡終端晶振特點：

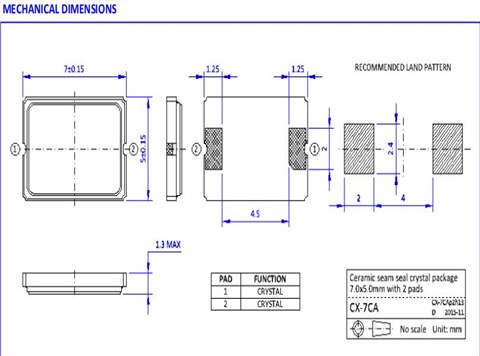

●小包裝尺寸7.0x 5.0 x 1.1mm, 2個襯墊。

●優異的耐熱性和抗震性。

●高可靠的縫封封裝，低老化。

●符合AEC-Q200標準的汽車級產品可供選擇。

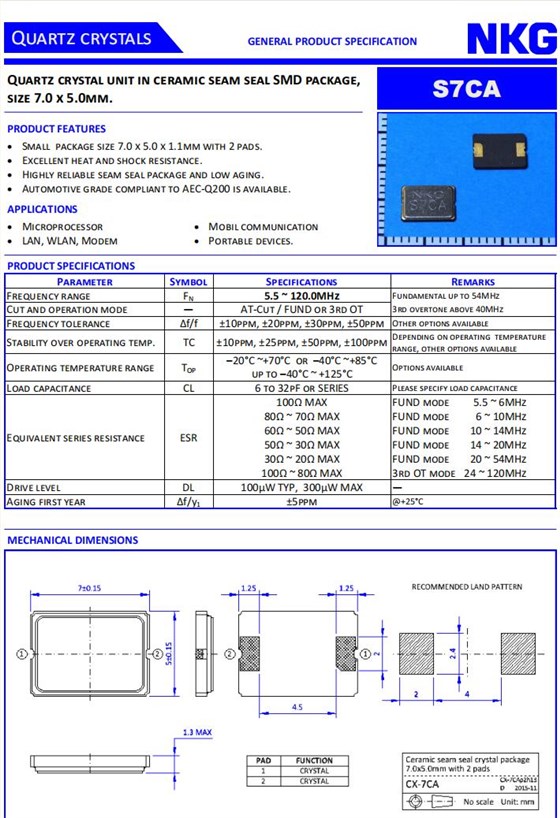

yijin-2 NKG Crystal|S7CA晶振|S7CA54.0000F16M1Y-EXT|6G網絡終端晶振規格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	54MHz	-
Cut and operation mode	-	AT-Cut / FUND or 3rd OT	-
Frequency tolerance	Δf/f	±10ppm	Other options available
Stability over operating temp.	TC	±15ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Load capacitance	CL	16pF	Please specify load capacitance
Equivalent series resistance	ESR	30Ω~20Ω MAX	FUND mode 20 ~ 54MHz
Drive level	DL	100µW TYP, 300µW MAX	-
Aging first year	Δf/y1	±5ppm	@+25°C
