產品簡介

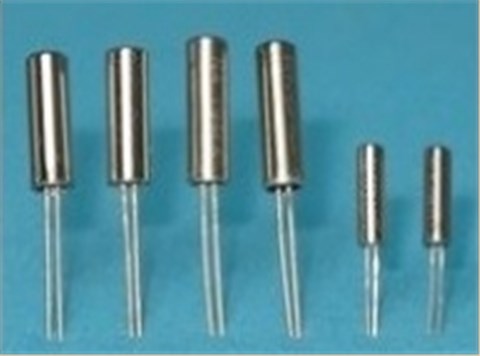

NKG Crystal|01-CR3-01|01-CR3-01-19M800-T16-2050E|圓柱插件晶振,NKG Crystal,01-CR3-01圓柱晶振,進口晶振,01-CR3-01-19M800-T16-2050E晶振,無源晶振,石英晶體諧振器,2×6晶振,二腳插件晶振,頻率19.8MHz,負載16pF,頻率容差20ppm,工作溫度范圍-20~70°C,小體積晶振,高精度晶振,無鉛環保晶振,攝像頭晶振,DVD家電影音系統晶振,物聯網晶振,數字電表晶振.

產品詳情

yijin-1 NKG Crystal|01-CR3-01|01-CR3-01-19M800-T16-2050E|圓柱插件晶振,NKG Crystal,01-CR3-01圓柱晶振,進口晶振,01-CR3-01-19M800-T16-2050E晶振,無源晶振,石英晶體諧振器,2×6晶振,二腳插件晶振,頻率19.8MHz,負載16pF,頻率容差20ppm,工作溫度范圍-20~70°C,小體積晶振,高精度晶振,無鉛環保晶振,攝像頭晶振,DVD家電影音系統晶振,物聯網晶振,數字電表晶振.

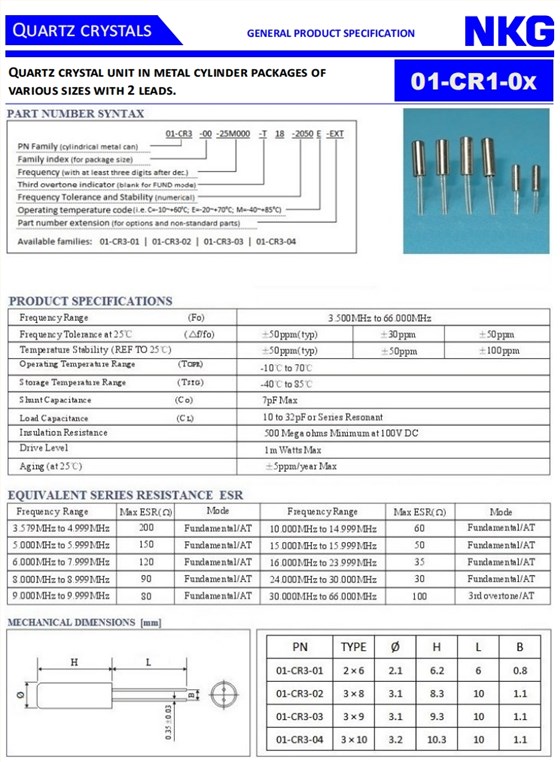

yijin-2 NKG Crystal|01-CR3-01|01-CR3-01-19M800-T16-2050E|圓柱插件晶振規格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	19.8MHz	-
Cut and operation mode	-	FUNDAMENTAL / 3rd OVERTONE	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±50ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–20°C ~+70°C	Options available
Load capacitance	CL	16pF	Please specify load capacitance
Equivalent series resistance	ESR	35ΩMAX	FUND mode 16 ~ 23.999MHz
Drive level	DL	1mW MAX	-
Aging first year	Δf/y1	±5ppm	@+25°C
