產品簡介

NKG晶振|01-CR1-02|01-CR1-02-25M000-T18-3050E|HC-49S插件晶振,NKG晶振,01-CR1-02無源晶振,進口晶振,01-CR1-02-25M000-T18-3050E晶振,HC-49S插件晶振,石英晶體諧振器,11.3×4.65 ×3.5mm晶振,二腳封裝晶振,頻率25MHz,負載18pF,頻率容差30ppm,工作溫度范圍-20~70°C,高可靠性晶振,高密封封裝晶振,無鉛環保晶振,以太網晶振,專業視頻設備晶振,CPU晶振,微處理器晶振.

產品詳情

yijin-1 NKG晶振|01-CR1-02|01-CR1-02-25M000-T18-3050E|HC-49S插件晶振,NKG晶振,01-CR1-02無源晶振,進口晶振,01-CR1-02-25M000-T18-3050E晶振,HC-49S插件晶振,石英晶體諧振器,11.3×4.65 ×3.5mm晶振,二腳封裝晶振,頻率25MHz,負載18pF,頻率容差30ppm,工作溫度范圍-20~70°C,高可靠性晶振,高密封封裝晶振,無鉛環保晶振,以太網晶振,專業視頻設備晶振,CPU晶振,微處理器晶振.

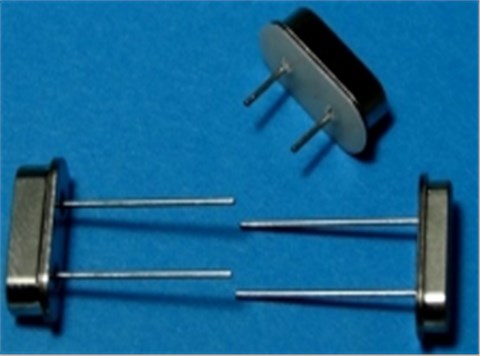

NKG晶振|01-CR1-02|01-CR1-02-25M000-T18-3050E|HC-49S插件晶振特點：

●傳統的HC-49/S封裝2引線

●最適用于低頻，可選間隔和切斷引線。

●可靠的密封金屬罐包裝

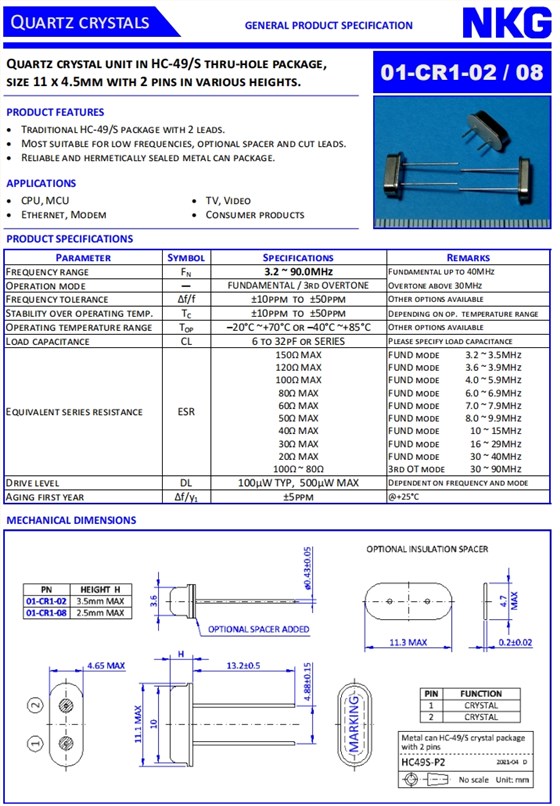

yijin-2 NKG晶振|01-CR1-02|01-CR1-02-25M000-T18-3050E|HC-49S插件晶振規格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	25MHz	-
Cut and operation mode	-	FUNDAMENTAL / 3rd OVERTONE	-
Frequency tolerance	Δf/f	±30ppm	Other options available
Stability over operating temp.	TC	±50ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–20°C ~+70°C	Options available
Load capacitance	CL	18pF	Please specify load capacitance
Equivalent series resistance	ESR	30ΩMAX	FUND mode 16 ~ 29MHz
Drive level	DL	100µW TYP, 500µW MAX	-
Aging first year	Δf/y1	±5ppm	@+25°C
