產品簡介

NKG晶振|01-CR1-01|01-CR1-01-40M000-T20-2030M|HC-49U插件晶振,香港NKG晶振,01-CR1-01石英晶振,無源晶振,01-CR1-01-40M000-T20-2030M晶振,晶體諧振器,HC-49U插件晶振,11.05×4.65 ×3.6mm晶振,二腳封裝晶振,頻率40MHz,負載20pF,頻率容差20ppm,工作溫度范圍-40~85°C,耐老化晶振,高品質晶振,耐高溫晶振,無線局域網晶振,家用電視機頂盒晶振,消費電子產品晶振,顯卡晶振.

產品詳情

yijin-1 NKG晶振|01-CR1-01|01-CR1-01-40M000-T20-2030M|HC-49U插件晶振,香港NKG晶振,01-CR1-01石英晶振,無源晶振,01-CR1-01-40M000-T20-2030M晶振,晶體諧振器,HC-49U插件晶振,11.05×4.65 ×3.6mm晶振,二腳封裝晶振,頻率40MHz,負載20pF,頻率容差20ppm,工作溫度范圍-40~85°C,耐老化晶振,高品質晶振,耐高溫晶振,無線局域網晶振,家用電視機頂盒晶振,消費電子產品晶振,顯卡晶振.

NKG晶振|01-CR1-01|01-CR1-01-40M000-T20-2030M|HC-49U插件晶振特點：

●傳統的HC-49/U封裝，2或3引線，SMD形式可用

●最適用于低頻

●可靠的密封金屬罐包裝

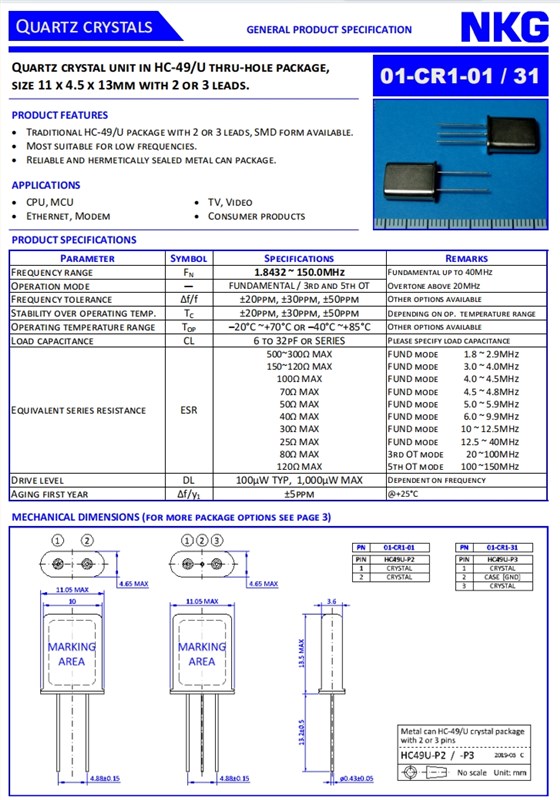

yijin-2 NKG晶振|01-CR1-01|01-CR1-01-40M000-T20-2030M|HC-49U插件晶振規格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	40MHz	-
Cut and operation mode	-	FUNDAMENTAL / 3rd OVERTONE	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±30ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Load capacitance	CL	20pF	Please specify load capacitance
Equivalent series resistance	ESR	25ΩMAX	FUND mode 12.5 ~ 40MHz
Drive level	DL	100µW TYP, 500µW MAX	-
Aging first year	Δf/y1	±5ppm	@+25°C
