歡迎光臨深圳市億金電子有限公司

首頁 百利通亞陶晶振

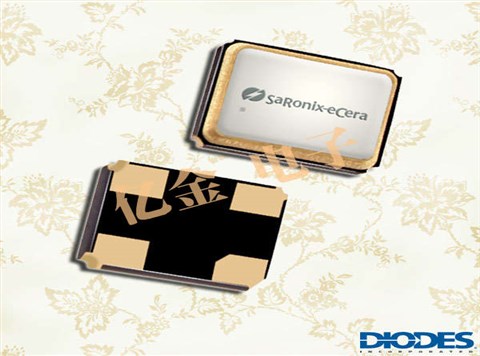

FW1920001 2016 DIODES 19.2MHz 8PF 10PPM -20~70℃

FW1920001 2016 DIODES 19.2MHz 8PF 10PPM -20~70℃FW1920001 2016 DIODES 19.2MHz 8PF 10PPM -20~70℃

產品簡介

FW1920001 2016 DIODES 19.2MHz 8PF 10PPM -20~70℃，臺灣百利通亞陶晶振公司,堅固的AT-cut晶體結構微型2.0 x 1.6mm陶瓷包裝，可在膠帶和卷；8mm帶，3000單位每卷無pb和RoHS/綠色兼容，4墊FW系列接縫密封裝置包含一個超微型的at切割晶體諧振器，封裝在一個標準的2.0 x 1.6mm陶瓷封裝中。這些緊湊的晶體是理想的表面安裝在密集的人口或小的形狀因子PCB應用。智能手機，便攜式/手持式電腦，PCMCIA卡，筆記本電腦，藍牙無線局域網SIPRF-SIM筆驅動器SD模塊

產品詳情

BLT-2

yijin-1

FW1920001 2016 DIODES 19.2MHz 8PF 10PPM -20~70℃，臺灣百利通亞陶晶振公司,堅固的AT-cut晶體結構微型2.0 x 1.6mm陶瓷包裝，可在膠帶和卷；8mm帶，3000單位每卷無pb和RoHS/綠色兼容，4墊FW系列接縫密封裝置包含一個超微型的at切割晶體諧振器，封裝在一個標準的2.0 x 1.6mm陶瓷封裝中。這些緊湊的晶體是理想的表面安裝在密集的人口或小的形狀因子PCB應用。智能手機，便攜式/手持式電腦，PCMCIA卡，筆記本電腦，藍牙無線局域網SIPRF-SIM筆驅動器SD模塊

yijin-2

FW1920001 2016 DIODES 19.2MHz 8PF 10PPM -20~70℃

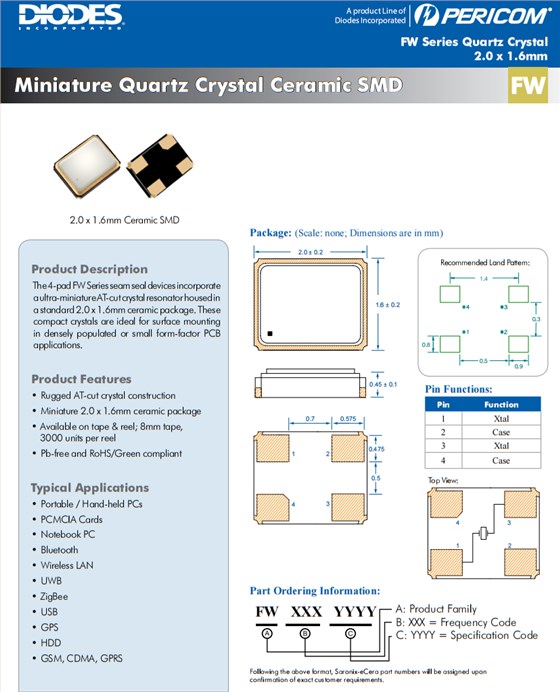

亞陶晶振規格

單位

FWQ/FW晶振頻率范圍

石英晶振基本條件

標準頻率

f_nom

19.2MHZ

標準頻率

儲存溫度

T_stg

-40°C ～ +85°C

裸存

工作溫度

T_use

-20°C ～ +70°C

標準溫度

激勵功率

DL

200μW Max.

推薦:1μW ～ 100μW

頻率公差

f_— l

±50 × 10-6(標準),
(±15 × 10-6～ ±50 × 10-6可用)

+25°C 對于超出標準的規格說明,
請聯系我們以便獲取相關的信息,http://www.gslzqx.com

頻率溫度特征

f_tem

±30 × 10-6/-20°C ～ +70°C

超出標準的規格請聯系我們.

負載電容

CL

8pF

超出標準說明,請聯系我們.

yijin-3

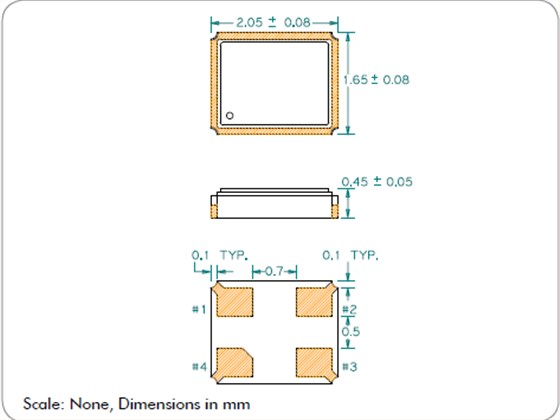

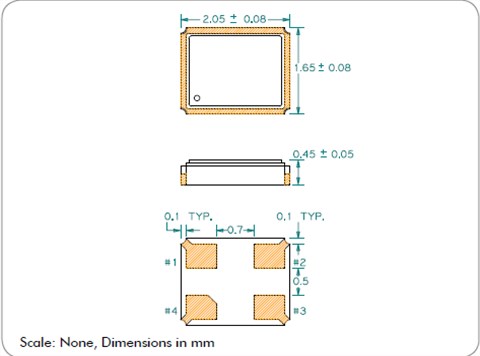

FW 2016

FW

DIODES原廠編碼 生產廠家 型號 頻率 頻率穩定度 頻率偏差 負載電容 工作溫度
FW1600008 Diodes晶振 FW 16MHz ±20ppm ±10ppm 12pF -40°C ~ 85°C
FW1600008 Diodes晶振 FW 16MHz ±20ppm ±10ppm 12pF -40°C ~ 85°C
FW1600008 Diodes晶振 FW 16MHz ±20ppm ±10ppm 12pF -40°C ~ 85°C
FW1920001 Diodes晶振 FW 19.2MHz ±20ppm ±10ppm 8pF -20°C ~ 70°C
FW1920001 Diodes晶振 FW 19.2MHz ±20ppm ±10ppm 8pF -20°C ~ 70°C
FW1920001 Diodes晶振 FW 19.2MHz ±20ppm ±10ppm 8pF -20°C ~ 70°C
FW2600018 Diodes晶振 FW 26MHz ±10ppm ±10ppm 9pF -20°C ~ 75°C
FW2600018 Diodes晶振 FW 26MHz ±10ppm ±10ppm 9pF -20°C ~ 75°C
FW2600018 Diodes晶振 FW 26MHz ±10ppm ±10ppm 9pF -20°C ~ 75°C
FW3740009 Diodes晶振 FW 37.4MHz ±15ppm ±10ppm 11pF -20°C ~ 70°C
FW3740009 Diodes晶振 FW 37.4MHz ±15ppm ±10ppm 11pF -20°C ~ 70°C
FW3740009 Diodes晶振 FW 37.4MHz ±15ppm ±10ppm 11pF -20°C ~ 70°C
FW2000008 Diodes晶振 FW 20MHz ±10ppm ±10ppm 12pF -20°C ~ 85°C
FW2000008 Diodes晶振 FW 20MHz ±10ppm ±10ppm 12pF -20°C ~ 85°C
FW2000008 Diodes晶振 FW 20MHz ±10ppm ±10ppm 12pF -20°C ~ 85°C
FW3000010 Diodes晶振 FW 30MHz ±30ppm ±30ppm 10pF -20°C ~ 70°C
FW3000010 Diodes晶振 FW 30MHz ±30ppm ±30ppm 10pF -20°C ~ 70°C
FW3000010 Diodes晶振 FW 30MHz ±30ppm ±30ppm 10pF -20°C ~ 70°C
FW4000001 Diodes晶振 FW 40MHz ±15ppm ±10ppm 18pF -10°C ~ 85°C
FW4000001 Diodes晶振 FW 40MHz ±15ppm ±10ppm 18pF -10°C ~ 85°C
FW4000001 Diodes晶振 FW 40MHz ±15ppm ±10ppm 18pF -10°C ~ 85°C
FW2400001 Diodes晶振 FW 24MHz ±50ppm ±50ppm 20pF -20°C ~ 70°C
FW2400001 Diodes晶振 FW 24MHz ±50ppm ±50ppm 20pF -20°C ~ 70°C
FW2400001 Diodes晶振 FW 24MHz ±50ppm ±50ppm 20pF -20°C ~ 70°C
FW1600010 Diodes晶振 FW 16MHz ±20ppm ±10ppm 8pF -40°C ~ 85°C
FW1600010 Diodes晶振 FW 16MHz ±20ppm ±10ppm 8pF -40°C ~ 85°C
FW1600010 Diodes晶振 FW 16MHz ±20ppm ±10ppm 8pF -40°C ~ 85°C
FW3200020 Diodes晶振 FW 32MHz ±30ppm ±30ppm 10pF -40°C ~ 85°C
FW3200020 Diodes晶振 FW 32MHz ±30ppm ±30ppm 10pF -40°C ~ 85°C
FW3200020 Diodes晶振 FW 32MHz ±30ppm ±30ppm 10pF -40°C ~ 85°C
FW2500025Z Diodes晶振 FW 25MHz ±30ppm ±30ppm 20pF -20°C ~ 80°C
FW2500025Z Diodes晶振 FW 25MHz ±30ppm ±30ppm 20pF -20°C ~ 80°C
FW2500025Z Diodes晶振 FW 25MHz ±30ppm ±30ppm 20pF -20°C ~ 80°C
FW374WFBR2 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 16pF -20°C ~ 85°C
FW374WFBR2 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 16pF -20°C ~ 85°C
FW374WFBR2 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 16pF -20°C ~ 85°C
FW400WFMT1 Diodes晶振 FW 40MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW400WFMT1 Diodes晶振 FW 40MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW400WFMT1 Diodes晶振 FW 40MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW374WFMR1 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 8pF -30°C ~ 85°C
FW374WFMR1 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 8pF -30°C ~ 85°C
FW374WFMR1 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 8pF -30°C ~ 85°C
FW384WFIN1 Diodes晶振 FW 38.4MHz ±12ppm ±10ppm 7pF -30°C ~ 90°C
FW384WFIN1 Diodes晶振 FW 38.4MHz ±12ppm ±10ppm 7pF -30°C ~ 90°C
FW384WFIN1 Diodes晶振 FW 38.4MHz ±12ppm ±10ppm 7pF -30°C ~ 90°C
FW520WFMT1 Diodes晶振 FW 52MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW520WFMT1 Diodes晶振 FW 52MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW520WFMT1 Diodes晶振 FW 52MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW260WFMT1 Diodes晶振 FW 26MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW260WFMT1 Diodes晶振 FW 26MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW260WFMT1 Diodes晶振 FW 26MHz ±17ppm ±7ppm 12pF -40°C ~ 100°C
FW260WFMR1 Diodes晶振 FW 26MHz ±10ppm ±10ppm 9pF -20°C ~ 85°C
FW260WFMR1 Diodes晶振 FW 26MHz ±10ppm ±10ppm 9pF -20°C ~ 85°C
FW260WFMR1 Diodes晶振 FW 26MHz ±10ppm ±10ppm 9pF -20°C ~ 85°C
FW374WFBR1 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 12pF -20°C ~ 85°C
FW374WFBR1 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 12pF -20°C ~ 85°C
FW374WFBR1 Diodes晶振 FW 37.4MHz ±10ppm ±10ppm 12pF -20°C ~ 85°C
FW400WFMR1 Diodes晶振 FW 40MHz ±10ppm ±10ppm 10pF -20°C ~ 85°C
FW400WFMR1 Diodes晶振 FW 40MHz ±10ppm ±10ppm 10pF -20°C ~ 85°C
FW400WFMR1 Diodes晶振 FW 40MHz ±10ppm ±10ppm 10pF -20°C ~ 85°C
FW3840001 Diodes晶振 FW 38.4MHz ±10ppm ±10ppm 9pF -20°C ~ 70°C
FW3840001 Diodes晶振 FW 38.4MHz ±10ppm ±10ppm 9pF -20°C ~ 70°C
FW3840001 Diodes晶振 FW 38.4MHz ±10ppm ±10ppm 9pF -20°C ~ 70°C
FW2500016Z Diodes晶振 FW 25MHz ±40ppm ±30ppm 6pF -30°C ~ 85°C
FW2500016Z Diodes晶振 FW 25MHz ±40ppm ±30ppm 6pF -30°C ~ 85°C
FW2500016Z Diodes晶振 FW 25MHz ±40ppm ±30ppm 6pF -30°C ~ 85°C
FW400WFQA1 Diodes晶振 FW 40MHz ±10ppm ±10ppm 7pF -30°C ~ 85°C
FW400WFQA1 Diodes晶振 FW 40MHz ±10ppm ±10ppm 7pF -30°C ~ 85°C
FW400WFQA1 Diodes晶振 FW 40MHz ±10ppm ±10ppm 7pF -30°C ~ 85°C
FW400WFMR1 Diodes晶振 FW 40MHz ±10ppm ±10ppm 10pF -20°C ~ 85°C
