ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520

ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520

產品簡介

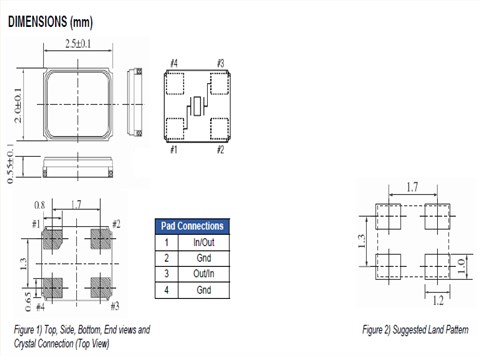

ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520,美國ECS晶振,微型的ECX-2236是一個非常緊湊的SMD晶體。2.5 x 2.0 x 0.55 mm陶瓷封裝是當今SMD制造環境的理想選擇。低輪廓，2.5 x 2.0 mm足跡，擴展溫度范圍選項， RoHS兼容。

產品詳情

ECS-1

yijin-1

ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520,美國ECS晶振,微型的ECX-2236是一個非常緊湊的SMD晶體。2.5 x 2.0 x 0.55 mm陶瓷封裝是當今SMD制造環境的理想選擇。低輪廓，2.5 x 2.0 mm足跡，擴展溫度范圍選項， RoHS兼容。

yijin-2

ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520

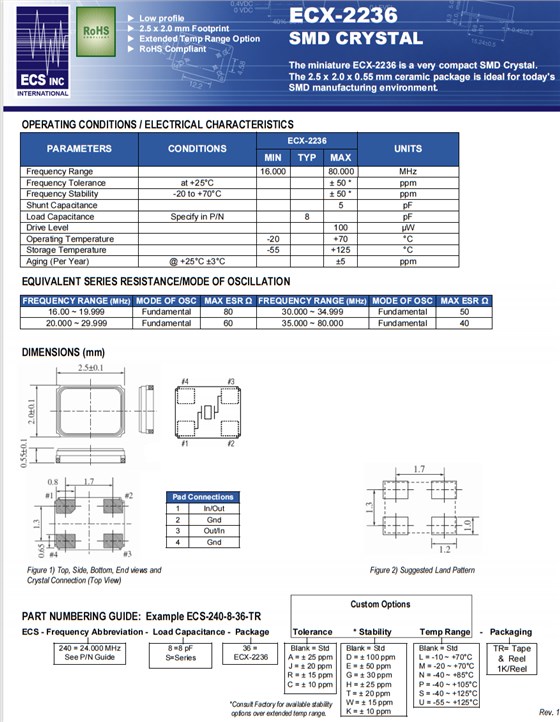

參數 環境 ECX-2236 單位
最小值 典型的 最大值
頻率 16.000 80.000 MHz
頻率容差 at +25°C ± 50 * ppm
頻率偏差度 -20 to +70°C ± 50 * ppm
并聯電容 5 pF
負載電容 Specify in P/N 8 pF
驅動電平 100 µW
工作溫度 --20 +70 °C
儲存溫度 --55 +125 °C
老化 @ +25°C ±3°C ±5 ppm

yijin-3

ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520

ECX-2236 2520

ECX-2236

ECS原廠編碼 型號 頻率 頻率容差 頻率偏差度 負載電容 工作溫度
ECS-160-8-36CKM ECX-2236 16MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
ECS-184-8-36CKM ECX-2236 18.432MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
ECS-192-8-36CKM ECX-2236 19.2MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
ECS-196-8-36CKM ECX-2236 19.6608MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
ECS-200-8-36CKM ECX-2236 20MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
ECS-240-8-36CKM ECX-2236 24MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
ECS-245.7-8-36CKM ECX-2236 24.576MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
ECS-250-8-36CKM ECX-2236 25MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
ECS-260-8-36CKM ECX-2236 26MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
ECS-270-8-36CKM ECX-2236 27MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
ECS-300-8-36CKM ECX-2236 30MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
ECS-320-8-36CKM ECX-2236 32MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
ECS-360-8-36CKM ECX-2236 36MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
ECS-400-8-36CKM ECX-2236 40MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
ECS-480-8-36CKM ECX-2236 48MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
ECS-800-8-36CKM ECX-2236 80MHz ±10ppm ±10ppm 8pF -20°C ~ 70°C
ECS-120-10-36Q-ES-TR ECX-2236Q 12MHz ±50ppm ±30ppm 10pF -40°C ~ 125°C
ECS-160-10-36Q-ES-TR ECX-2236Q 16MHz ±50ppm ±30ppm 10pF -40°C ~ 125°C
ECS-200-10-36Q-ES-TR ECX-2236Q 20MHz ±50ppm ±30ppm 10pF -40°C ~ 125°C
ECS-240-10-36Q-ES-TR ECX-2236Q 24MHz ±50ppm ±30ppm 10pF -40°C ~ 125°C
ECS-245.7-10-36Q-ES-TR ECX-2236Q 24.576MHz ±50ppm ±30ppm 10pF -40°C ~ 125°C
ECS-250-10-36Q-ES-TR ECX-2236Q 25MHz ±50ppm ±30ppm 10pF -40°C ~ 125°C
ECS-260-10-36Q-ES-TR ECX-2236Q 26MHz ±50ppm ±30ppm 10pF -40°C ~ 125°C
ECS-270-10-36Q-ES-TR ECX-2236Q 27MHz ±50ppm ±30ppm 10pF -40°C ~ 125°C
ECS-300-10-36Q-ES-TR ECX-2236Q 30MHz ±50ppm ±30ppm 10pF -40°C ~ 125°C
ECS-320-10-36Q-ES-TR ECX-2236Q 32MHz ±50ppm ±30ppm 10pF -40°C ~ 125°C
ECS-120-10-36Q-JEN-TR ECX-2236Q 12MHz ±50ppm ±20ppm 10pF -40°C ~ 85°C
ECS-160-10-36Q-JEN-TR ECX-2236Q 16MHz ±50ppm ±20ppm 10pF -40°C ~ 85°C
ECS-200-10-36Q-JEN-TR ECX-2236Q 20MHz ±50ppm ±20ppm 10pF -40°C ~ 85°C
ECS-240-10-36Q-JEN-TR ECX-2236Q 24MHz ±50ppm ±20ppm 10pF -40°C ~ 85°C
ECS-245.7-10-36Q-JEN-TR ECX-2236Q 24.576MHz ±50ppm ±20ppm 10pF -40°C ~ 85°C
ECS-250-10-36Q-JEN-TR ECX-2236Q 25MHz ±50ppm ±20ppm 10pF -40°C ~ 85°C
ECS-260-10-36Q-JEN-TR ECX-2236Q 26MHz ±50ppm ±20ppm 10pF -40°C ~ 85°C
ECS-270-10-36Q-JEN-TR ECX-2236Q 27MHz ±50ppm ±20ppm 10pF -40°C ~ 85°C
ECS-300-10-36Q-JEN-TR ECX-2236Q 30MHz ±50ppm ±20ppm 10pF -40°C ~ 85°C
ECS-320-10-36Q-JEN-TR ECX-2236Q 32MHz ±50ppm ±20ppm 10pF -40°C ~ 85°C
ECS-400-10-36Q-JEN-TR ECX-2236Q 40MHz ±50ppm ±20ppm 10pF -40°C ~ 85°C
ECS-480-10-36Q-JEN-TR ECX-2236Q 48MHz ±50ppm ±20ppm 10pF -40°C ~ 85°C
ECS-400-10-36Q-DS-TR ECX-2236Q 40MHz ±100ppm ±30ppm 10pF -40°C ~ 125°C
ECS-480-10-36Q-DS-TR ECX-2236Q 48MHz ±100ppm ±30ppm 10pF -40°C ~ 125°C
ECS-160-10-36Q-DS-TR ECX-2236Q 16MHz ±100ppm ±30ppm 10pF -40°C ~ 125°C
ECS-240-10-36Q-DS-TR ECX-2236Q 24MHz ±100ppm ±30ppm 10pF -40°C ~ 125°C
ECS-250-10-36Q-DS-TR ECX-2236Q 25MHz ±100ppm ±30ppm 10pF -40°C ~ 125°C
ECS-270-10-36Q-DS-TR ECX-2236Q 27MHz ±100ppm ±30ppm 10pF -40°C ~ 125°C
ECS-320-10-36Q-DS-TR ECX-2236Q 32MHz ±100ppm ±30ppm 10pF -40°C ~ 125°C
ECS-120-10-36Q-DS-TR ECX-2236Q 12MHz ±100ppm ±30ppm 10pF -40°C ~ 125°C
ECS-200-10-36Q-DS-TR ECX-2236Q 20MHz ±100ppm ±30ppm 10pF -40°C ~ 125°C
ECS-245.7-10-36Q-DS-TR ECX-2236Q 24.576MHz ±100ppm ±30ppm 10pF -40°C ~ 125°C
ECS-260-10-36Q-DS-TR ECX-2236Q 26MHz ±100ppm ±30ppm 10pF -40°C ~ 125°C
ECS-300-10-36Q-DS-TR ECX-2236Q 30MHz ±100ppm ±30ppm 10pF -40°C ~ 125°C
ECS-120-10-36Q-EP-TR ECX-2236Q 12MHz ±50ppm ±30ppm 10pF -40°C ~ 105°C
ECS-160-10-36Q-EP-TR ECX-2236Q 16MHz ±50ppm ±30ppm 10pF -40°C ~ 105°C
ECS-200-10-36Q-EP-TR ECX-2236Q 20MHz ±50ppm ±30ppm 10pF -40°C ~ 105°C
ECS-240-10-36Q-EP-TR ECX-2236Q 24MHz ±50ppm ±30ppm 10pF -40°C ~ 105°C
ECS-245.7-10-36Q-EP-TR ECX-2236Q 24.576MHz ±50ppm ±30ppm 10pF -40°C ~ 105°C
ECS-250-10-36Q-EP-TR ECX-2236Q 25MHz ±50ppm ±30ppm 10pF -40°C ~ 105°C
ECS-260-10-36Q-EP-TR ECX-2236Q 26MHz ±50ppm ±30ppm 10pF -40°C ~ 105°C
ECS-270-10-36Q-EP-TR ECX-2236Q 27MHz ±50ppm ±30ppm 10pF -40°C ~ 105°C
ECS-300-10-36Q-EP-TR ECX-2236Q 30MHz ±50ppm ±30ppm 10pF -40°C ~ 105°C
ECS-320-10-36Q-EP-TR ECX-2236Q 32MHz ±50ppm ±30ppm 10pF -40°C ~ 105°C
ECS-400-10-36Q-EP-TR ECX-2236Q 40MHz ±50ppm ±30ppm 10pF -40°C ~ 105°C
ECS-480-10-36Q-EP-TR ECX-2236Q 48MHz ±50ppm ±30ppm 10pF -40°C ~ 105°C
ECS-240-8-36-RWN-TR ECX-2236 24MHz ±15ppm ±15ppm 8pF -40°C ~ 85°C
ECS-160-8-36-RWN-TR ECX-2236 16MHz ±15ppm ±15ppm 8pF -40°C ~ 85°C
ECS-250-8-36-RWN-TR ECX-2236 25MHz ±15ppm ±15ppm 8pF -40°C ~ 85°C
ECS-300-8-36-RWN-TR ECX-2236 30MHz ±15ppm ±15ppm 8pF -40°C ~ 85°C
ECS-184.3-8-36-RWN-TR ECX-2236 18.432MHz ±15ppm ±15ppm 8pF -40°C ~ 85°C
ECS-192.0-8-36-RWN-TR ECX-2236 19.2MHz ±15ppm ±15ppm 8pF -40°C ~ 85°C
ECS-260-8-36-RWN-TR ECX-2236 26MHz ±15ppm ±15ppm 8pF -40°C ~ 85°C
ECS-480-8-36-RWN-TR ECX-2236 48MHz ±15ppm ±15ppm 8pF -40°C ~ 85°C
ECS-200-8-36-RWN-TR ECX-2236 20MHz ±15ppm ±15ppm 8pF -40°C ~ 85°C
ECS-245.7-8-36-RWN-TR ECX-2236 24.576MHz ±15ppm ±15ppm 8pF -40°C ~ 85°C
ECS-270-8-36-RWN-TR ECX-2236 27MHz ±15ppm ±15ppm 8pF -40°C ~ 85°C
ECS-320-8-36-RWN-TR ECX-2236 32MHz ±15ppm ±15ppm 8pF -40°C ~ 85°C
