Ecliptek|EB2532JA12-12.288M TR|15PPM|-40~85℃|2520|12PF

產品簡介

Ecliptek|EB2532JA12-12.288M TR|15PPM|-40~85℃|2520|12PF,石英晶振,歐美進口晶振,高品質晶振,EB2520晶振,Ecliptek晶振,EB2532JA12-12.288M TR晶振,4腳晶振,無源晶振,石英晶振,貼片晶振,車載氛圍燈控制器晶振,汽車香氛系統晶振，汽車級石英晶體諧振器，2.0mm x 2.5mm x 0.65mm ，4墊陶瓷表面安裝（SMD）

產品詳情

RS-2

yijin-1

Ecliptek|EB2532JA12-12.288M TR|15PPM|-40~85℃|2520|12PF,石英晶振,歐美進口晶振,高品質晶振,EB2520晶振,Ecliptek晶振,EB2532JA12-12.288M TR晶振,4腳晶振,無源晶振,石英晶振,貼片晶振,車載氛圍燈控制器晶振,汽車香氛系統晶振，汽車級石英晶體諧振器，2.0mm x 2.5mm x 0.65mm ，4墊陶瓷表面安裝（SMD）

yijin-2

Ecliptek|EB2532JA12-12.288M TR|15PPM|-40~85℃|2520|12PF

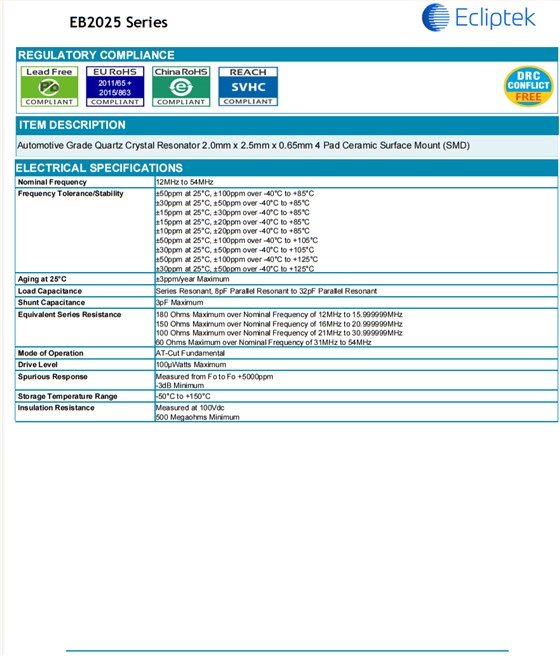

標稱頻率	12MHz to 54MHz
容許頻率/穩定性	±50ppm at 25°C, ±100ppm over -40°C to +85°C ±30ppm at 25°C, ±50ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over -40°C to +85°C ±15ppm at 25°C, ±20ppm over -40°C to +85°C ±10ppm at 25°C, ±20ppm over -40°C to +85°C ±50ppm at 25°C, ±100ppm over -40°C to +105°C ±30ppm at 25°C, ±50ppm over -40°C to +105°C ±50ppm at 25°C, ±100ppm over -40°C to +125°C ±30ppm at 25°C, ±50ppm over -40°C to +125°C
老化	±3ppm/year Maximum
負載電容	Series Resonant, 8pF Parallel Resonant to 32pF Parallel Resonant
并聯電容	3pF Maximum
等效串聯電阻	180 Ohms Maximum over Nominal Frequency of 12MHz to 15.999999MHz 150 Ohms Maximum over Nominal Frequency of 16MHz to 20.999999MHz 100 Ohms Maximum over Nominal Frequency of 21MHz to 30.999999MHz 60 Ohms Maximum over Nominal Frequency of 31MHz to 54MHz
工作模式	AT-Cut Fundamental
驅動電平	100µWatts Maximum
假信號	Measured from Fo to Fo +5000ppm -3dB Minimum
儲存溫度	-50°C to +150°C
絕緣電阻	Measured at 100Vdc 500 Megaohms Minimum

Ecliptek|EB2532JA12-12.288M TR|15PPM|-40~85℃|2520|12PF

EA2025RA08-32.000M 2520

eb2025

Ecliptek原廠編碼	生產商	系列	類型	頻率	頻率穩定性	頻率容差	負載電容	工作溫度
EB2532JA12-24.000M TR	Ecliptek	EB2532	MHz 晶體	24 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-28.63636M TR	Ecliptek	EB2532	MHz 晶體	28.63636 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-13.560M TR	Ecliptek	EB2532	MHz 晶體	13.56 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-27.000M TR	Ecliptek	EB2532	MHz 晶體	27 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-40.000M TR	Ecliptek	EB2532	MHz 晶體	40 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532YA12-40.000M TR	Ecliptek	EB2532	MHz 晶體	40 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-25.000M TR	Ecliptek	EB2532	MHz 晶體	25 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-12.288M TR	Ecliptek	EB2532	MHz 晶體	12.288 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-27.000M TR	Ecliptek	EB2532	MHz 晶體	27 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-20.000M TR	Ecliptek	EB2532	MHz 晶體	20 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-26.000M TR	Ecliptek	EB2532	MHz 晶體	26 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-28.63636M TR	Ecliptek	EB2532	MHz 晶體	28.63636 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532JA12-25.000M TR	Ecliptek	EB2532	MHz 晶體	25 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-32.000M TR	Ecliptek	EB2532	MHz 晶體	32 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-20.000M TR	Ecliptek	EB2532	MHz 晶體	20 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-24.576M TR	Ecliptek	EB2532	MHz 晶體	24.576 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-26.000M TR	Ecliptek	EB2532	MHz 晶體	26 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-12.000M TR	Ecliptek	EB2532	MHz 晶體	12 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-12.288M TR	Ecliptek	EB2532	MHz 晶體	12.288 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-16.000M TR	Ecliptek	EB2532	MHz 晶體	16 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532YA12-12.000M TR	Ecliptek	EB2532	MHz 晶體	12 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-30.000M TR	Ecliptek	EB2532	MHz 晶體	30 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-32.000M TR	Ecliptek	EB2532	MHz 晶體	32 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-13.560M TR	Ecliptek	EB2532	MHz 晶體	13.56 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-24.576M TR	Ecliptek	EB2532	MHz 晶體	24.576 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-16.000M TR	Ecliptek	EB2532	MHz 晶體	16 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-24.000M TR	Ecliptek	EB2532	MHz 晶體	24 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532JA12-30.000M TR	Ecliptek	EB2532	MHz 晶體	30 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-18.432M TR	Ecliptek	EB2532	MHz 晶體	18.432 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532YA12-18.432M TR	Ecliptek	EB2532	MHz 晶體	18.432 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
