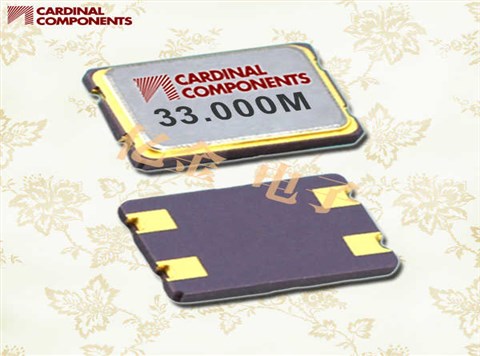

CX5Z-ARB2C5-70-7.3728D18,7.3728MHz,50PPM,-40~125℃,18PF，美國Cardinal晶振CX5系列，石英貼片晶振，石英晶體諧振器，無鉛環保晶振，陶瓷表面安裝，寬頻率范圍：7.3728MHZ至48.000MHZ，可用的最低最大驅動器級別，非常緊密的穩定性，小體積輕薄型，被廣泛用于移動通訊設備，無線網絡，藍牙模塊，電腦主板，汽車電子，數碼電子，物聯網等應用.

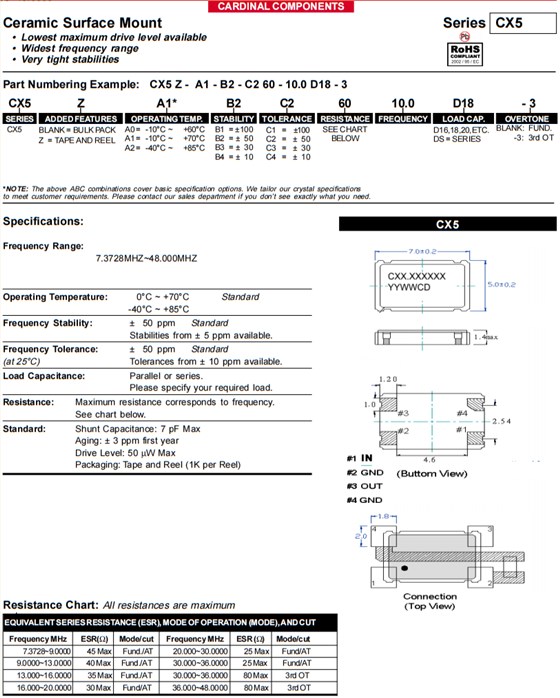

CX5Z-ARB2C5-70-7.3728D18,7.3728MHz,50PPM,-40~125℃,18PF
| Frequency Range: | 7.3728MHZ |
| Operating Temperature: |
0°C ~ +70°C Standard -40°C ~ +85°C |
| Frequency Stability: |
± 50 ppm Standard Stabilities from ± 5 ppm available. |
|
Frequency Tolerance: (at 25°C) |
± 50 ppm Standard Tolerances from ± 10 ppm available. |
| Load Capacitance: |
Parallel or series. Please specify your required load. |
| Resistance: |
Maximum resistance corresponds to frequency. See chart below. |
| Standard: |
Shunt Capacitance: 7 pF Max Aging: ± 3 ppm first year Drive Level: 50 µW Max Packaging: Tape and Reel (1K per Reel) |
CX5Z-ARB2C5-70-7.3728D18,7.3728MHz,50PPM,-40~125℃,18PF
進口晶振編碼
廠家
型號
系列
頻率
頻率穩定度
CX5Z-A5B2C5-70-7.37280D18
Cardinal Crystal
CX5
MHz Crystal
7.3728MHz
±50ppm
CX5Z-ARB2C5-70-7.3728D18
Cardinal Crystal
CX5
MHz Crystal
7.3728MHz
±50ppm
CX5Z-A5B2C5-40-27.0D18
Cardinal Crystal
CX5
MHz Crystal
27MHz
±50ppm
CX5Z-A5B2C5-40-24.0D18
Cardinal Crystal
CX5
MHz Crystal
24MHz
±50ppm
CX5Z-A5B2C5-40-24.576D18
Cardinal Crystal
CX5
MHz Crystal
24.576MHz
±50ppm
CX5Z-A5B2C5-70-8.0D18
Cardinal Crystal
CX5
MHz Crystal
8MHz
±50ppm
CX5Z-A1B2C5-40-24.0D18
Cardinal Crystal
CX5
MHz Crystal
24MHz
±50ppm
CX5Z-A5B2C5-50-16.0D18
Cardinal Crystal
CX5
MHz Crystal
16MHz
±50ppm
CX5Z-A0B2C5-50-16.0D18
Cardinal Crystal
CX5
MHz Crystal
16MHz
±50ppm
CX5Z-A2B2C5-40-10.0D18
Cardinal Crystal
CX5
MHz Crystal
10MHz
±50ppm
CX5Z-A2B2C5-70-8.0D18
Cardinal Crystal
CX5
MHz Crystal
8MHz
±50ppm
CX5Z-A2B2C5-40-25D18
Cardinal Crystal
CX5
MHz Crystal
25MHz
±50ppm
CX5Z-A2B2C5-40-12.0D18
Cardinal Crystal
CX5
MHz Crystal
12MHz
±50ppm
CX5Z-A5B2C5-40-12.0D18
Cardinal Crystal
CX5
MHz Crystal
12MHz
±50ppm
CX5Z-A5B2C5-40-10.0D18
Cardinal Crystal
CX5
MHz Crystal
10MHz
±50ppm
CX5Z-A5B2C5-40-25D18
Cardinal Crystal
CX5
MHz Crystal
25MHz
±50ppm
