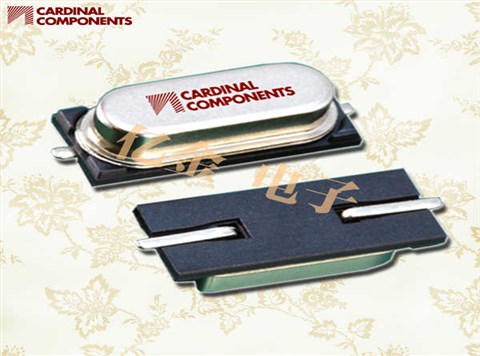

CSM4Z-A2B3C3-40-14.7456D18,Cardinal表面貼裝水晶,藍牙晶振，美國進口晶振，Cardinal晶振，卡迪納爾晶振，型號：CSM4系列，編碼為：CSM4Z-A2B3C3-40-14.7456D18，頻率：14.7456MHz，頻率穩定性：±30ppm，工作溫度范圍：-40℃至+85℃，負載電容：18pF，小體積晶振尺寸：12.5x4.5mm金屬包裝，是一款橢圓形金屬殼封裝石英晶體，低輪廓表面安裝晶體，兩腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，無鉛環保晶振，SMD晶體，諧振器。被廣泛用于：通訊設備晶振，無線晶振，藍牙模塊晶振，無線局域網晶振，MPU，微控制器，機頂盒等應用.

CSM4Z-A2B3C3-40-14.7456D18,Cardinal表面貼裝水晶,藍牙晶振，產品特點：

•薄型表面貼裝水晶

•封裝是自動表面安裝組件和回流焊實踐的理想選擇

•CSM1-4.6毫米；CSM4-3.5毫米；CSM5-3.0mm高

•AT切割水晶，貼片晶振

•頻率范圍：3.579545MHz至80MHz

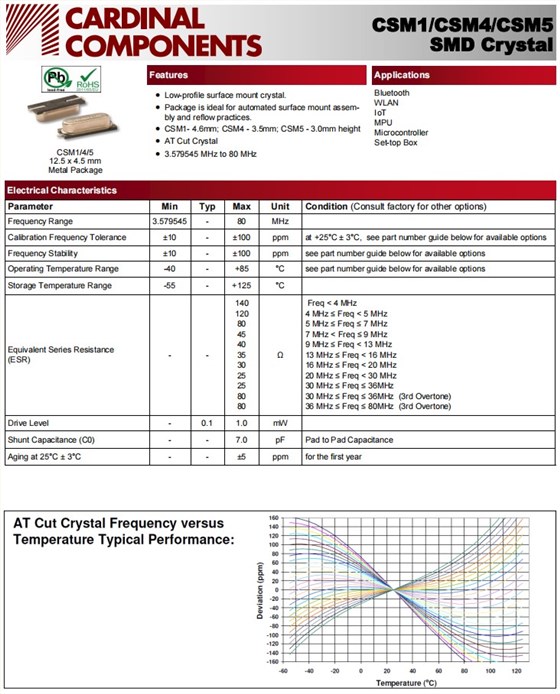

CSM4Z-A2B3C3-40-14.7456D18,Cardinal表面貼裝水晶,藍牙晶振,參數表

Parameter

Min

Typ

Max

Unit

Condition(Consult factory for other options)

Frequency Range

14.7456

MHz

Calibration Frequency Tolerance

±10

-

±100

ppm

at +25°C ± 3°C,see part number guide below for available options

Frequency Stability

±10

-

±100

ppm

see part number guide below for available options

Operating Temperature Range

-40

-

+85

°C

see part number guide below for available options

Storage Temperature Range

-55

-

+125

°C

Equivalent Series Resistance (ESR)

-

-

140 120 80 45 40 35 30 25 25 80 80

Ω

Freq < 4 MHz 4 MHz ≤ Freq < 5 MHz 5 MHz ≤ Freq ≤ 7 MHz 7 MHz < Freq ≤ 9 MHz 9 MHz ≤ Freq < 13 MHz 13 MHz ≤ Freq < 16 MHz 16 MHz ≤ Freq < 20 MHz 20 MHz ≤ Freq < 30 MHz 30 MHz ≤ Freq ≤ 36MHz 30 MHz ≤ Freq ≤ 36MHz(3rd Overtone) 36 MHz ≤ Freq ≤ 80MHz(3rd Overtone)

Drive Level

-

0.1

1.0

mW

Shunt Capacitance (C0)

-

-

7.0

pF

Pad to Pad Capacitance

Aging at 25°C ± 3°C

-

-

±5

ppm

for the first year

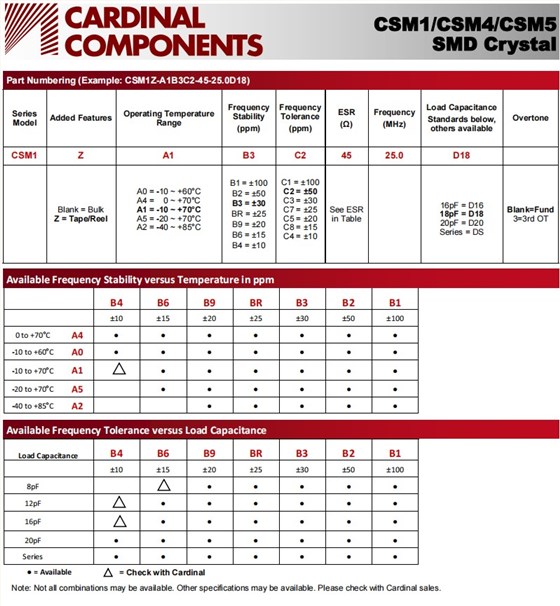

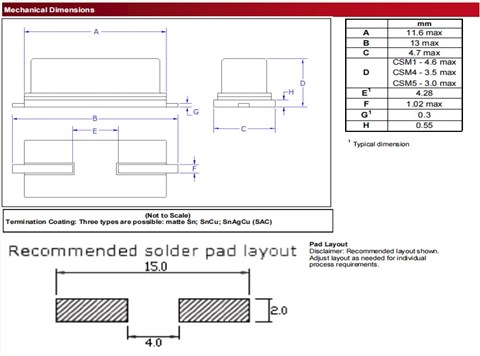

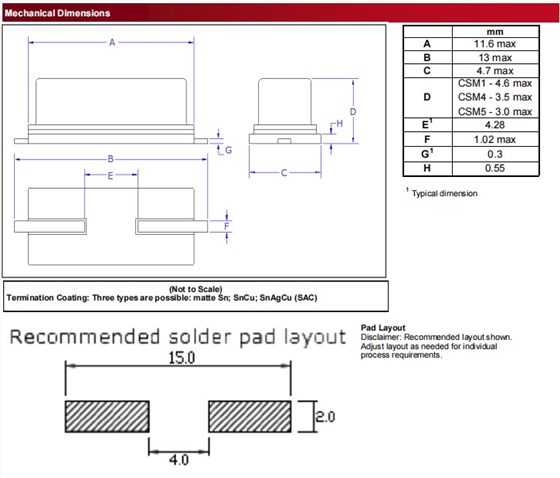

CSM4Z-A2B3C3-40-14.7456D18,Cardinal表面貼裝水晶,藍牙晶振,尺寸圖
