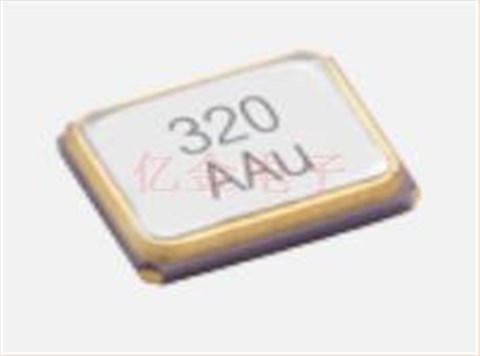

C2E-19.200-13-2030-X-R 2520 19.2MHz 20PPM 13PF -40~85℃ AKER

產品簡介

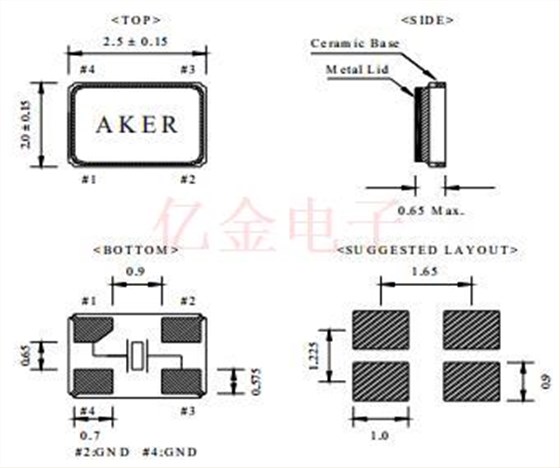

C2E-19.200-13-2030-X-R 2520 19.2MHz 20PPM 13PF -40~85℃ AKER,臺產AKER石英晶體，微處理器晶體單元低輪廓2.5 x 2.0毫米表面安裝-4墊通用產品規格，頻率公差和穩定性選項由于物理尺寸而受到限制。* ±10 PPM溫度穩定性僅適用于-30到+85°C. -標準溫度范圍不需要包括在零件號描述中。-產品以磁帶和卷軸配置的形式發貨。

產品詳情

SITIME-2

yijin-2

C2E-19.200-13-2030-X-R 2520 19.2MHz 20PPM 13PF -40~85℃ AKER

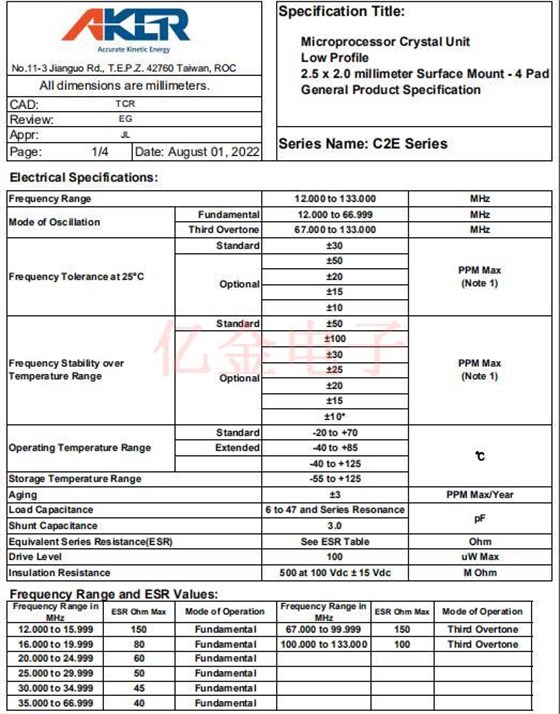

溫度下的頻率偏差

Standard

±50

PPMMax(Note1)

Optional

±100

±30

±25

±20

±15

±10*

工作溫度

Standard

-20to+70

℃

Extended

-40to+85

-40to+125

儲存溫度

-55to+125

老化

±3

PPMMax/Year

負載電容

6to47andSeriesResonance

并聯帶內容

3.0

等效串聯電阻(ESR)

SeeESRTable

Ohm

驅動電平

100

uWMax

絕緣電阻

500at100Vdc±15Vdc

MOhm

yijin-3

C2E-19.200-13-2030-X-R 2520 19.2MHz 20PPM 13PF -40~85℃ AKER

AKER零件編號	生產商	系列	頻率	頻率穩定性	頻率容差	負載電容
C3E-8.000-18-3030-R	AKER晶振	C3E	8 MHz	±30ppm	±30ppm	18pF
C3E-25.000-8-1015-X-R	AKER晶振	C3E	25 MHz	±15ppm	±10ppm	8pF
C3E-24.576-12-3030-X-R	AKER晶振	C3E	24.576 MHz	±30ppm	±30ppm	12pF
C2E-25.000-10-3030-X-M	AKER晶振	C2E	25 MHz	±30ppm	±30ppm	10pF
C3E-16.000-8-1015-R	AKER晶振	C3E	16 MHz	±15ppm	±10ppm	8pF
C3E-12.000-12-1015-R	AKER晶振	C3E	12 MHz	±15ppm	±10ppm	12pF
C3E-16.000-8-50100-X1-R	AKER晶振	C3E	16 MHz	±100ppm	±50ppm	8pF
C3E-12.000-18-3030-X-R	AKER晶振	C3E	12 MHz	±30ppm	±30ppm	18pF
C1E-25.000-20-2030-R	AKER晶振	C1E	25 MHz	±30ppm	±20ppm	20pF
C2E-16.000-8-1530-X-R	AKER晶振	C2E	16 MHz	±30ppm	±15ppm	8pF
C1E-32.000-8-1515-R	AKER晶振	C1E	32 MHz	±15ppm	±15ppm	8pF
C3E-13.560-12-1530-X-R	AKER晶振	C3E	13.56 MHz	±30ppm	±15ppm	12pF
C2E-24.000-10-1010-R	AKER晶振	C2E	24 MHz	±10ppm	±10ppm	10pF
C1E-24.000-10-1010-R	AKER晶振	C1E	24 MHz	±10ppm	±10ppm	10pF
C3E-16.000-12-1015-R	AKER晶振	C3E	16 MHz	±15ppm	±10ppm	12pF
C3E-16.000-12-3030-R	AKER晶振	C3E	16 MHz	±30ppm	±30ppm	12pF
C3E-24.000-10-1015-X-R	AKER晶振	C3E	24 MHz	±15ppm	±10ppm	10pF
C3E-25.000-18-3030-R	AKER晶振	C3E	25 MHz	±30ppm	±30ppm	18pF
C2E-25.000-10-3030-X-R	AKER晶振	C2E	25 MHz	±30ppm	±30ppm	10pF
C3E-32.000-12-1010-R	AKER晶振	C3E	32 MHz	±10ppm	±10ppm	12pF
C3E-12.000-8-3030-R	AKER晶振	C3E	12 MHz	±30ppm	±30ppm	8pF
C3E-32.000-10-1010-R	AKER晶振	C3E	32 MHz	±10ppm	±10ppm	10pF
C2E-16.000-10-1010-R	AKER晶振	C2E	16 MHz	±10ppm	±10ppm	10pF
C3E-12.000-8-1010-R	AKER晶振	C3E	12 MHz	±10ppm	±10ppm	8pF
C3E-24.000-12-1530-X-R	AKER晶振	C3E	24 MHz	±30ppm	±15ppm	12pF
C3E-12.000-8-1520-R	AKER晶振	C3E	12 MHz	±20ppm	±15ppm	8pF
C3E-24.000-18-1010-R	AKER晶振	C3E	24 MHz	±10ppm	±10ppm	18pF
C3E-20.000-12-3030-X-R	AKER晶振	C3E	20 MHz	±30ppm	±30ppm	12pF
C1E-32.000-10-1015-X-R	AKER晶振	C1E	32 MHz	±15ppm	±10ppm	10pF
C1E-24.000-10-1015-M	AKER晶振	C1E	24 MHz	±15ppm	±10ppm	10pF
C3E-24.576-12-1010-R	AKER晶振	C3E	24.576 MHz	±10ppm	±10ppm	12pF
C3E-25.000-8-1015-R	AKER晶振	C3E	25 MHz	±15ppm	±10ppm	8pF
C3E-12.000-18-3030-R	AKER晶振	C3E	12 MHz	±30ppm	±30ppm	18pF
C3E-16.000-12-1015-X-R	AKER晶振	C3E	16 MHz	±15ppm	±10ppm	12pF
C1E-32.000-8-1015-X-R	AKER晶振	C1E	32 MHz	±15ppm	±10ppm	8pF
C1E-24.000-10-1015-R	AKER晶振	C1E	24 MHz	±15ppm	±10ppm	10pF
C2E-16.000-12-3030-X-R	AKER晶振	C2E	16 MHz	±30ppm	±30ppm	12pF
C3E-8.000-12-1020-R	AKER晶振	C3E	8 MHz	±20ppm	±10ppm	12pF
C3E-8.000-20-1020-R	AKER晶振	C3E	8 MHz	±20ppm	±10ppm	12pF
C3E-8.000-18-1020-R	AKER晶振	C3E	8 MHz	±20ppm	±10ppm	18pF
C2E-12.000-10-2050-X1-R	AKER晶振	C2E X1	12 MHz	±50ppm	±20ppm	10pF
C2E-12.000-8-2050-X1-R	AKER晶振	C2E X1	12 MHz	±50ppm	±20ppm	8pF
C2E-20.000-10-2050-X1-R	AKER晶振	C2E X1	20 MHz	±50ppm	±20ppm	10pF
C3E-8.000-10-1020-M	AKER晶振	C3E	8 MHz	±20ppm	±10ppm	10pF
C3E-8.000-18-1020-X-R	AKER晶振	C3E	8 MHz	±20ppm	±10ppm	18pF
C2E-12.000-18-1020-X-R	AKER晶振	C2E	12 MHz	±20ppm	±10ppm	18pF
C2E-12.000-18-1020-R	AKER晶振	C2E	12 MHz	±20ppm	±10ppm	18pF
C3E-25.000-20-1015-X-R	AKER晶振	C3E	25 MHz	±15ppm	±10ppm	20pF
C3E-24.000-9-1015-X-R	AKER晶振	C3E	24 MHz	±15ppm	±10ppm	9pF
C3E-16.000-9-1015-X-R	AKER晶振	C3E	16 MHz	±15ppm	±10ppm	9pF
C3E-24.000-9-1010-R	AKER晶振	C3E	24 MHz	±10ppm	±10ppm	9pF
C3E-16.000-9-1010-R	AKER晶振	C3E	16 MHz	±10ppm	±10ppm	9pF
C2E-19.200-13-2030-X-R	AKER晶振	C2E	19.2 MHz	±30ppm	±20ppm	13pF
