首頁 AKER晶振

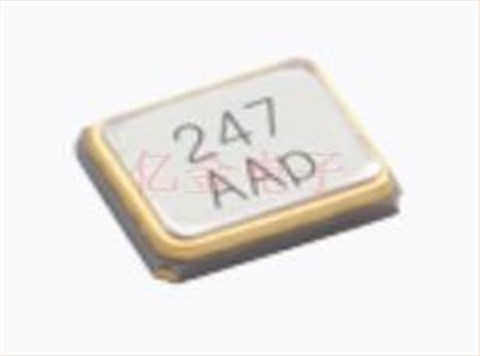

C1E-24.000-10-1010-R-24MHz-10PPM-10PF-2016-AKER

C1E-24.000-10-1010-R-24MHz-10PPM-10PF-2016-AKERC1E-24.000-10-1010-R-24MHz-10PPM-10PF-2016-AKER

產品簡介

 C1E-24.000-10-1010-R-24MHz-10PPM-10PF-2016-AKER，貼片石英晶振，臺灣晶振,貼片晶振,石英晶振,AKER晶振,C1E-24.000-10-1010-R晶振,高品質晶振,四腳晶振,無源晶振,石英晶振,小尺寸晶振,2016晶振,智能穿戴設備晶振,家庭多媒體系統晶振,微處理器晶體，單元低輪廓，2.0 x 1.6毫米表面安裝，-4墊通用產品規格，

產品詳情

SITIME-2

yijin-1

C1E-24.000-10-1010-R-24MHz-10PPM-10PF-2016-AKER，貼片石英晶振，臺灣晶振,貼片晶振,石英晶振,AKER晶振,C1E-24.000-10-1010-R晶振,高品質晶振,四腳晶振,無源晶振,石英晶振,小尺寸晶振,2016晶振,智能穿戴設備晶振,家庭多媒體系統晶振,微處理器晶體，單元低輪廓，2.0 x 1.6毫米表面安裝，-4墊通用產品規格，

yijin-2

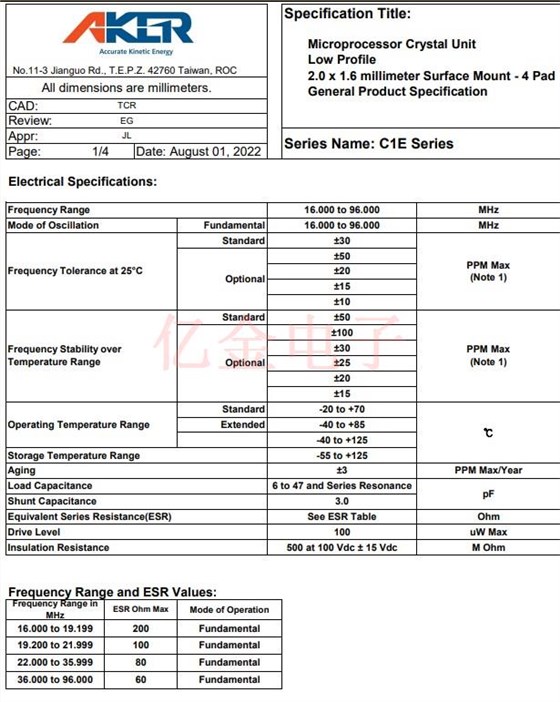

C1E-24.000-10-1010-R-24MHz-10PPM-10PF-2016-AKER

頻率范圍 16.000to96.000 MHz
工作模式 Fundamental 16.000to96.000 MHz
頻率容差at25°C Standard ±30 PPMMax(Note1)
Optional ±50
±20
±15
±10
在溫度范圍內的頻率偏差度 Standard ±50 PPMMax(Note1)
Optional ±100
±30
±25
±20
±15
工作溫度范圍 Standard -20to+70 ℃
Extended -40to+85
-40to+125
儲存溫度范圍 -55to+125
老化 ±3 PPMMax/Year
負載電容 6to47andSeriesResonance pF
并聯電阻 3.0
等效串聯電阻(ESR) SeeESRTable Ohm
驅動電平 100 uWMax
絕緣電阻 500at100Vdc±15Vdc MOhm

yijin-3

C1E-24.000-10-1010-R-24MHz-10PPM-10PF-2016-AKER

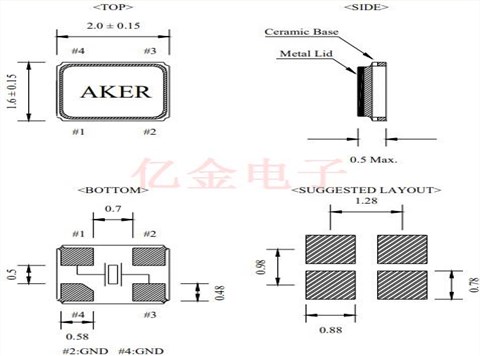

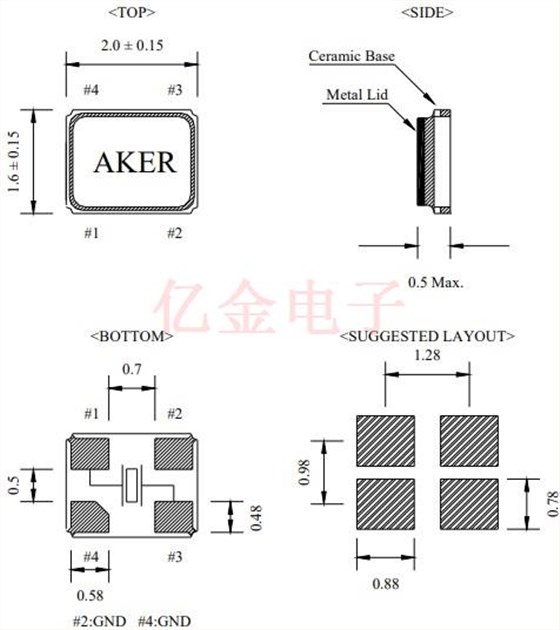

C1E 尺寸

C1E 11

AKER制造商零件編號 供應商 系列 頻率 頻率穩定性 頻率容差 負載電容
C3E-8.000-18-3030-R Aker晶振 C3E 8 MHz ±30ppm ±30ppm 18pF
C3E-25.000-8-1015-X-R Aker晶振 C3E 25 MHz ±15ppm ±10ppm 8pF
C3E-24.576-12-3030-X-R Aker晶振 C3E 24.576 MHz ±30ppm ±30ppm 12pF
C2E-25.000-10-3030-X-M Aker晶振 C2E 25 MHz ±30ppm ±30ppm 10pF
C3E-16.000-8-1015-R Aker晶振 C3E 16 MHz ±15ppm ±10ppm 8pF
C3E-12.000-12-1015-R Aker晶振 C3E 12 MHz ±15ppm ±10ppm 12pF
C3E-16.000-8-50100-X1-R Aker晶振 C3E 16 MHz ±100ppm ±50ppm 8pF
C3E-12.000-18-3030-X-R Aker晶振 C3E 12 MHz ±30ppm ±30ppm 18pF
C1E-25.000-20-2030-R Aker晶振 C1E 25 MHz ±30ppm ±20ppm 20pF
C2E-16.000-8-1530-X-R Aker晶振 C2E 16 MHz ±30ppm ±15ppm 8pF
C3E-8.000-10-3030-R Aker晶振 C3E 8 MHz ±30ppm ±30ppm 10pF
C3E-24.000-12-1015-X-R Aker晶振 C3E 24 MHz ±15ppm ±10ppm 12pF
C3E-32.000-10-1015-R Aker晶振 C3E 32 MHz ±15ppm ±10ppm 10pF
C3E-25.000-12-3030-X-R Aker晶振 C3E 25 MHz ±30ppm ±30ppm 12pF
C3E-32.000-8-1015-X-R Aker晶振 C3E 32 MHz ±15ppm ±10ppm 8pF
C3E-24.000-10-1010-R Aker晶振 C3E 24 MHz ±10ppm ±10ppm 10pF
C3E-12.000-12-3030-X-R Aker晶振 C3E 12 MHz ±30ppm ±30ppm 12pF
C3E-25.000-8-1010-R Aker晶振 C3E 25 MHz ±10ppm ±10ppm 8pF
C3E-8.000-18-3030-X-R Aker晶振 C3E 8 MHz ±30ppm ±30ppm 18pF
C3E-16.000-12-3030-X-R Aker晶振 C3E 16 MHz ±30ppm ±30ppm 12pF
C1E-32.000-8-1515-R Aker晶振 C1E 32 MHz ±15ppm ±15ppm 8pF
C3E-13.560-12-1530-X-R Aker晶振 C3E 13.56 MHz ±30ppm ±15ppm 12pF
C2E-24.000-10-1010-R Aker晶振 C2E 24 MHz ±10ppm ±10ppm 10pF
C1E-24.000-10-1010-R Aker晶振 C1E 24 MHz ±10ppm ±10ppm 10pF
C3E-25.000-10-3030-X-R Aker晶振 C3E 25 MHz ±30ppm ±30ppm 10pF
C3E-25.000-18-2030-R Aker晶振 C3E 25 MHz ±30ppm ±20ppm 18pF
C3E-24.000-8-1015-R Aker晶振 C3E 24 MHz ±15ppm ±10ppm 8pF
C3E-8.000-10-3030-X-R Aker晶振 C3E 8 MHz ±30ppm ±30ppm 10pF
C3E-16.000-12-1015-R Aker晶振 C3E 16 MHz ±15ppm ±10ppm 12pF
C3E-16.000-12-3030-R Aker晶振 C3E 16 MHz ±30ppm ±30ppm 12pF
C3E-24.000-10-1015-X-R Aker晶振 C3E 24 MHz ±15ppm ±10ppm 10pF
C3E-25.000-18-3030-R Aker晶振 C3E 25 MHz ±30ppm ±30ppm 18pF
C2E-25.000-10-3030-X-R Aker晶振 C2E 25 MHz ±30ppm ±30ppm 10pF
C3E-32.000-12-1010-R Aker晶振 C3E 32 MHz ±10ppm ±10ppm 12pF
C3E-12.000-8-3030-R Aker晶振 C3E 12 MHz ±30ppm ±30ppm 8pF
C3E-32.000-10-1010-R Aker晶振 C3E 32 MHz ±10ppm ±10ppm 10pF
C2E-16.000-10-1010-R Aker晶振 C2E 16 MHz ±10ppm ±10ppm 10pF
C3E-12.000-8-1010-R Aker晶振 C3E 12 MHz ±10ppm ±10ppm 8pF
C3E-24.000-12-1530-X-R Aker晶振 C3E 24 MHz ±30ppm ±15ppm 12pF
C3E-12.000-8-1520-R Aker晶振 C3E 12 MHz ±20ppm ±15ppm 8pF
C3E-24.000-18-1010-R Aker晶振 C3E 24 MHz ±10ppm ±10ppm 18pF
C3E-20.000-12-3030-X-R Aker晶振 C3E 20 MHz ±30ppm ±30ppm 12pF
C1E-32.000-10-1015-X-R Aker晶振 C1E 32 MHz ±15ppm ±10ppm 10pF
C1E-24.000-10-1015-M Aker晶振 C1E 24 MHz ±15ppm ±10ppm 10pF
C3E-24.576-12-1010-R Aker晶振 C3E 24.576 MHz ±10ppm ±10ppm 12pF
C3E-25.000-8-1015-R Aker晶振 C3E 25 MHz ±15ppm ±10ppm 8pF
C3E-12.000-18-3030-R Aker晶振 C3E 12 MHz ±30ppm ±30ppm 18pF
C3E-16.000-12-1015-X-R Aker晶振 C3E 16 MHz ±15ppm ±10ppm 12pF
C1E-32.000-8-1015-X-R Aker晶振 C1E 32 MHz ±15ppm ±10ppm 8pF
C3E-27.120-12-1010-R Aker晶振 C3E 27.12 MHz ±10ppm ±10ppm 12pF
C3E-25.000-8-1530-X-R Aker晶振 C3E 25 MHz ±30ppm ±15ppm 8pF
C3E-16.000-12-1015-X-M Aker晶振 C3E 16 MHz ±15ppm ±10ppm 12pF
C3E-24.000-12-3030-X-R Aker晶振 C3E 24 MHz ±30ppm ±30ppm 12pF
C3E-32.000-12-1530-X-R Aker晶振 C3E 32 MHz ±30ppm ±15ppm 12pF
C3E-25.000-8-1520-R Aker晶振 C3E 25 MHz ±20ppm ±15ppm 8pF
C3E-20.000-10-1530-X-R Aker晶振 C3E 20 MHz ±30ppm ±15ppm 10pF
C3E-40.000-10-1015-X-R Aker晶振 C3E 40 MHz ±15ppm ±10ppm 10pF
C3E-26.000-10-1015-X-R3 Aker晶振 C3E 26 MHz ±15ppm ±10ppm 10pF
C3E-16.000-18-3030-X-R Aker晶振 C3E 16 MHz ±30ppm ±30ppm 18pF
C1E-24.000-10-1015-R Aker晶振 C1E 24 MHz ±15ppm ±10ppm 10pF
C2E-16.000-12-3030-X-R Aker晶振 C2E 16 MHz ±30ppm ±30ppm 12pF
C3E-8.000-12-1020-R Aker晶振 C3E 8 MHz ±20ppm ±10ppm 12pF
C3E-8.000-20-1020-R Aker晶振 C3E 8 MHz ±20ppm ±10ppm 12pF
C3E-8.000-18-1020-R Aker晶振 C3E 8 MHz ±20ppm ±10ppm 18pF
C3E-8.000-10-1020-M Aker晶振 C3E 8 MHz ±20ppm ±10ppm 10pF
C3E-8.000-18-1020-X-R Aker晶振 C3E 8 MHz ±20ppm ±10ppm 18pF
C2E-12.000-18-1020-X-R Aker晶振 C2E 12 MHz ±20ppm ±10ppm 18pF
C2E-12.000-18-1020-R Aker晶振 C2E 12 MHz ±20ppm ±10ppm 18pF
C3E-25.000-20-1015-X-R Aker晶振 C3E 25 MHz ±15ppm ±10ppm 20pF
C3E-24.000-9-1015-X-R Aker晶振 C3E 24 MHz ±15ppm ±10ppm 9pF
C3E-16.000-9-1015-X-R Aker晶振 C3E 16 MHz ±15ppm ±10ppm 9pF
C3E-24.000-9-1010-R Aker晶振 C3E 24 MHz ±10ppm ±10ppm 9pF
C3E-16.000-9-1010-R Aker晶振 C3E 16 MHz ±10ppm ±10ppm 9pF
C2E-19.200-13-2030-X-R Aker晶振 C2E 19.2 MHz ±30ppm ±20ppm 13pF
