CTS,49SMD,ATSSM4P,4P037F35IET,3.6864MHz,20PF,30PPM

產品簡介

CTS,49SMD,ATSSM4P,4P037F35IET,3.6864MHz,20PF,30PPM，美國CTS晶振,特性：四鉛包[HC-49/US-SM類型]，基本和第三泛音晶體，替代常見塑料模塑設計，穩定頻率在溫度和驅動水平，頻率范圍3.2-64MHz，頻率公差，選擇±10ppm±30ppm，頻率穩定性，選擇±10ppm±50ppm，工作溫度，-20°C+70°C&-40°C+85°C標準，磁帶和卷軸包裝標準，RoHS/綠色兼容[6/6]，ATSSM4P [4 Pad]晶體系列的長期穩定性和可靠性提供了良好的電阻焊接金屬封裝的應用。優異的沖擊性能使其適用于微處理器、電信、工業、消費電子和網絡應用。

產品詳情

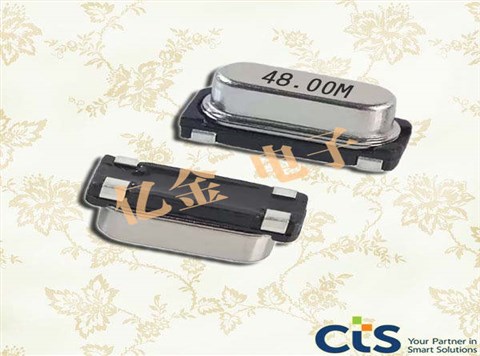

CTS-2

yijin-1

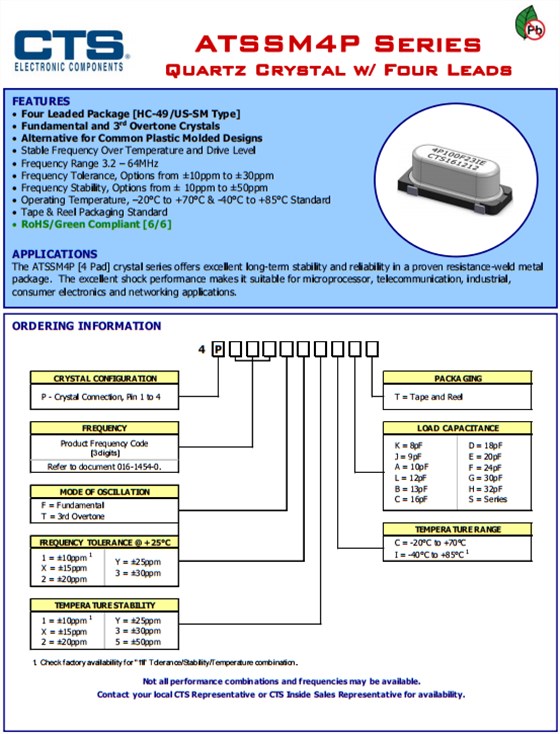

CTS,49SMD,ATSSM4P,4P037F35IET,3.6864MHz,20PF,30PPM，美國CTS晶振,特性：四鉛包[HC-49/US-SM類型]，基本和第三泛音晶體，替代常見塑料模塑設計，穩定頻率在溫度和驅動水平，頻率范圍3.2-64MHz，頻率公差，選擇±10ppm±30ppm，頻率穩定性，選擇±10ppm±50ppm，工作溫度，-20°C+70°C&-40°C+85°C標準，磁帶和卷軸包裝標準，RoHS/綠色兼容[6/6]，ATSSM4P [4 Pad]晶體系列的長期穩定性和可靠性提供了良好的電阻焊接金屬封裝的應用。優異的沖擊性能使其適用于微處理器、電信、工業、消費電子和網絡應用。

yijin-2

CTS,49SMD,ATSSM4P,4P037F35IET,3.6864MHz,20PF,30PPM

參數	數值
頻率范圍	3.2MHz to 40MHz	24MHz to 64MHz
工作莫斯	Fundamental	3rd Overtone
晶體切向	AT-Cut
頻率容差@ +25°C	±10, ±15, ±20, ±25, ±30ppm
Frequency Stability Tolerance	±10, ±15, ±20, ±25, ±30, ±50ppm
頻率穩定公差[工作溫度參考+25°C]
工作溫度	-20°C to +70°C
	-40°C to +85°C
負載電容	See Ordering Information
并聯電阻	7.0pF Maximum
驅動電平	100µW Typ., 1000µW Max.
老化	±3ppm/yr Typical, ±5ppm/yr Maximum
絕緣電阻	500M Ohms @ DC 100V
儲存溫度范圍	-40°C to +100°C

CTS,49SMD,ATSSM4P,4P037F35IET,3.6864MHz,20PF,30PPM

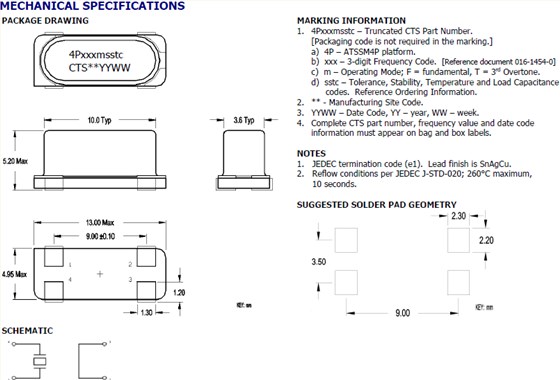

ATSSM4P 13-4.95

ATSM4P(1)

CTS原廠編碼	生產廠家	型號	頻率	頻率偏差	負載電容	工作溫度
4P036F35CDT	CTS晶振	ATSSM4P	3.579545MHz	±30ppm	18pF	-20°C ~ 70°C
4P036F35IST	CTS晶振	ATSSM4P	3.579545MHz	±30ppm	Series	-40°C ~ 85°C
4P037F35CDT	CTS晶振	ATSSM4P	3.6864MHz	±30ppm	18pF	-20°C ~ 70°C
4P037F35IST	CTS晶振	ATSSM4P	3.6864MHz	±30ppm	Series	-40°C ~ 85°C
4P040F35CDT	CTS晶振	ATSSM4P	4MHz	±30ppm	18pF	-20°C ~ 70°C
4P040F35IST	CTS晶振	ATSSM4P	4MHz	±30ppm	Series	-40°C ~ 85°C
4P049F35CDT	CTS晶振	ATSSM4P	4.9152MHz	±30ppm	18pF	-20°C ~ 70°C
4P049F35IST	CTS晶振	ATSSM4P	4.9152MHz	±30ppm	Series	-40°C ~ 85°C
4P050F35CDT	CTS晶振	ATSSM4P	5MHz	±30ppm	18pF	-20°C ~ 70°C
4P060F35IST	CTS晶振	ATSSM4P	6MHz	±30ppm	Series	-40°C ~ 85°C
4P073F35CDT	CTS晶振	ATSSM4P	7.3728MHz	±30ppm	18pF	-20°C ~ 70°C
4P080F35IST	CTS晶振	ATSSM4P	8MHz	±30ppm	Series	-40°C ~ 85°C
4P098F35CDT	CTS晶振	ATSSM4P	9.8304MHz	±30ppm	18pF	-20°C ~ 70°C
4P100F35IST	CTS晶振	ATSSM4P	10MHz	±30ppm	Series	-40°C ~ 85°C
4P111F35CDT	CTS晶振	ATSSM4P	11.0592MHz	±30ppm	18pF	-20°C ~ 70°C
4P120F35IST	CTS晶振	ATSSM4P	12MHz	±30ppm	Series	-40°C ~ 85°C
4P122F35CDT	CTS晶振	ATSSM4P	12.288MHz	±30ppm	18pF	-20°C ~ 70°C
4P143F35IST	CTS晶振	ATSSM4P	14.31818MHz	±30ppm	Series	-40°C ~ 85°C
4P147F35CDT	CTS晶振	ATSSM4P	14.7456MHz	±30ppm	18pF	-20°C ~ 70°C
4P160F35IST	CTS晶振	ATSSM4P	16MHz	±30ppm	Series	-40°C ~ 85°C
4P184F35CDT	CTS晶振	ATSSM4P	18.432MHz	±30ppm	18pF	-20°C ~ 70°C
4P200F35IST	CTS晶振	ATSSM4P	20MHz	±30ppm	Series	-40°C ~ 85°C
4P240F35CDT	CTS晶振	ATSSM4P	24MHz	±30ppm	18pF	-20°C ~ 70°C
4P24MF35IST	CTS晶振	ATSSM4P	24.7456MHz	±30ppm	Series	-40°C ~ 85°C
4P250F35CDT	CTS晶振	ATSSM4P	25MHz	±30ppm	18pF	-20°C ~ 70°C
