藍牙模塊應用晶振CX532Z-A5B3C5-70-12.0D18

2023-06-06 10:13:29

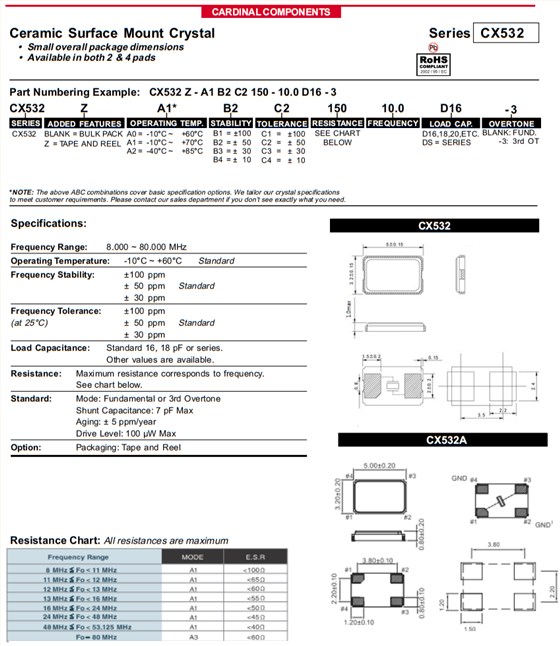

美國進口Cardinal卡迪納爾晶振CX532，是一款小體積晶振尺寸5.0x3.2mm表面貼裝晶體，整體封裝尺寸小，CX532晶振兩腳貼片晶振和CX532A晶振四腳貼片晶振可供選擇，無源晶振，石英貼片晶振，石英晶體諧振器，頻率范圍：8MHz-80MHz，頻率穩定度：±30ppm，工作溫度范圍：-40℃至+85℃，無鉛環保晶振，該石英晶體諧振器具有超小型，輕薄型，耐熱及耐環境特點，被廣泛用于通訊設備，無線局域網，藍牙模塊晶振，汽車電子，醫療設備，數碼電子，平板電腦，物聯網，微處理時鐘應用等。藍牙模塊應用晶振CX532Z-A5B3C5-70-12.0D18

進口晶振編碼	廠家	型號	系列	頻率	頻率穩定度
CX5Z-A5B2C5-70-7.37280D18	Cardinal晶振	CX5	MHz Crystal	7.3728MHz	±50ppm
CX532Z-A2B3C5-70-12.288D18	Cardinal晶振	CX532	MHz Crystal	12.288MHz	±30ppm
CX532Z-A2B3C5-70-16.0D18	Cardinal晶振	CX532	MHz Crystal	16MHz	±30ppm
CX5Z-ARB2C5-70-7.3728D18	Cardinal晶振	CX5	MHz Crystal	7.3728MHz	±50ppm
CX532Z-A2B3C5-70-12.0D18	Cardinal晶振	CX532	MHz Crystal	12MHz	±30ppm
CX5Z-A5B2C5-40-27.0D18	Cardinal晶振	CX5	MHz Crystal	27MHz	±50ppm
CX5Z-A5B2C5-40-24.0D18	Cardinal晶振	CX5	MHz Crystal	24MHz	±50ppm
CX5Z-A5B2C5-40-24.576D18	Cardinal晶振	CX5	MHz Crystal	24.576MHz	±50ppm
CX5Z-A5B2C5-70-8.0D18	Cardinal晶振	CX5	MHz Crystal	8MHz	±50ppm
CX5Z-A1B2C5-40-24.0D18	Cardinal晶振	CX5	MHz Crystal	24MHz	±50ppm
CX5Z-A5B2C5-50-16.0D18	Cardinal晶振	CX5	MHz Crystal	16MHz	±50ppm
CX5Z-A0B2C5-50-16.0D18	Cardinal晶振	CX5	MHz Crystal	16MHz	±50ppm
CX5Z-A2B2C5-40-10.0D18	Cardinal晶振	CX5	MHz Crystal	10MHz	±50ppm
CX532Z-A2B3C5-70-1966080D18	Cardinal晶振	CX532	MHz Crystal	19.6608MHz	±30ppm
CX532Z-A2B3C5-70-33.0D18	Cardinal晶振	CX532	MHz Crystal	33MHz	±30ppm
CX532Z-A2B3C5-70-27.0D18	Cardinal晶振	CX532	MHz Crystal	27MHz	±30ppm
CX532Z-A5B3C5-70-20.0D18	Cardinal晶振	CX532	無源晶體	20MHz	±30ppm
CX532Z-A2B3C5-70-14.7456D18	Cardinal晶振	CX532	MHz Crystal	14.7456MHz	±30ppm
CX532Z-A5B3C5-70-12.0D18	Cardinal晶振	CX532	MHz Crystal	12MHz	±30ppm
CX532Z-A2B3C5-70-50.0D18	Cardinal晶振	CX532	MHz Crystal	50MHz	±30ppm
CX532Z-A2B3C5-70-30.0D18	Cardinal晶振	CX532	MHz Crystal	30MHz	±30ppm
CX532Z-A5B3C5-70-27.0D18	Cardinal晶振	CX532	MHz Crystal	27MHz	±30ppm
CX532AZ-A5B2C5-70-25.0D18	Cardinal晶振	CX532	MHz Crystal	25MHz	±50ppm
CX532Z-A5B3C5-70-25.0D18	Cardinal晶振	CX532	MHz Crystal	25MHz	±30ppm
CX532Z-A2B3C5-70-20.0D18	Cardinal晶振	CX532	MHz Crystal	20MHz	±30ppm
CX5Z-A2B2C5-70-8.0D18	Cardinal晶振	CX5	MHz Crystal	8MHz	±50ppm
CX5Z-A2B2C5-40-25D18	Cardinal晶振	CX5	MHz Crystal	25MHz	±50ppm
CX532Z-A2B3C5-70-8.0D18	Cardinal晶振	CX532	MHz Crystal	8MHz	±30ppm
CX5Z-A2B2C5-40-12.0D18	Cardinal晶振	CX5	MHz Crystal	12MHz	±50ppm
CX5Z-A5B2C5-40-12.0D18	Cardinal晶振	CX5	MHz Crystal	12MHz	±50ppm
CX5Z-A5B2C5-40-10.0D18	Cardinal晶振	CX5	MHz Crystal	10MHz	±50ppm
CX5Z-A5B2C5-40-25D18	Cardinal晶振	CX5	MHz Crystal	25MHz	±50ppm
CX532Z-A5B3C5-70-18.432D18	Cardinal晶振	CX532	MHz Crystal	18.432MHz	±30ppm
CX532Z-A2B3C5-70-25.0D18	Cardinal晶振	CX532	MHz Crystal	25MHz	±30ppm

藍牙模塊應用晶振CX532Z-A5B3C5-70-12.0D18，Cardinal Components是一家面向服務的垂直集成供應商，提供高混頻頻率控制和RF產品解決方案。我們投資于石英晶體技術，為那些需要頻率控制設備的客戶提供最新的大批量產品。我們成立了合資企業和子公司，以提供最高頻率、最高質量的零件。Cardinal晶振致力于通過提高產量、降低成本、提高客戶滿意度以及滿足員工對培訓、安全和士氣的期望來持續提高質量。
